3 Cıvata Flanşlı Rulmanlar

3 cıvatalı flanşlı rulmanlar, 3 cıvatalı flanşlı rulman yatakları ve daha geniş iç bilezikli bilyalı rulmanların birleşimidir.
Yaygın olarak kullanılan 3 cıvatalı flanşlı rulman yatakları FB200 (standart hizmet) ve FCT200'dür (sfero dökümden hafif hizmet).
Preslenmiş çelikten yapılmış uç kapağı dış kirlere ve toza karşı koruma özelliğine sahiptir.
Bilyalı rulmanların kendi kendine hizalanma yeteneği, şaftın hafif statik yanlış hizalanmasını telafi edebilir. Rulmanlar, ayar vidaları ve eksantrik kilitleme bilezikleri vb. aracılığıyla mile kilitlenir.
Küresel bilyalı rulman yuvalarının içine doldurulan yağlayıcılar standart gres, düşük/yüksek sıcaklık gresi ve gıda sınıfı gres olabilir.

Contact Us Bize Ulaşın
ÖNV：Flanş Kartuşlu Rulman Üniteleri SONRAKİ：Askı Rulman Üniteleri
  • Özellikler
  • Bize Ulaşın

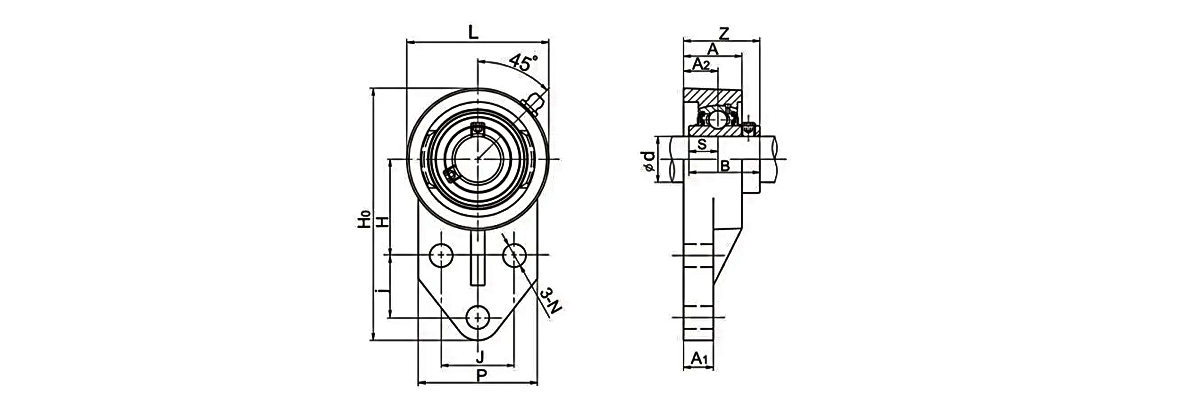

Birim No. Mil Çapı Boyutlar(mm) Cıvata Boyutu (değirmen) Ağırlık (kg)
d Ho H J j A2 A1 A N L P B S Z
(içinde) (mm)
UCFB201 12 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB201-8 1/2 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB202 15 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB202-9 9/16 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB202-10 5/8 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB203 17 110 42 32 27 15 13 25.5 10 60 52 31 12.7 33.3 M8 0.57
UCFB203-11 11/16 110 42 32 27 15 13 25.5 10 60 52 31 12.7 33.3 M8 0.57
UCFB204 20 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB204-12 3/4 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB205 25 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-14 7/8 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-15 15/16 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-16 1/1 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB206 30 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-17 1/16 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-18 1/8 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-19 3/16 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-20 1/4 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB207 35 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-20 1/4 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-21 5/16 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-22 3/8 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-23 7/16 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB208 40 164 60 50 41 21 16 36 12 100 78 49.2 19 51.2 M10 1.8
UCFB208-24 1/2 164 60 50 41 21 16 36 12 100 78 49.2 19 51.2 M10 1.8
UCFB208-25 9/16 164 60 50 41 21 16 36 12 100 78 49.2 19 51.2 M10 1.8
UCFB209 45 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB209-26 5/8 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB209-27 11/16 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB209-28 3/4 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB210 50 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3
UCFB210-30 7/8 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3
UCFB210-31 1-15/16 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3
UCFB210-32 1/2 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3

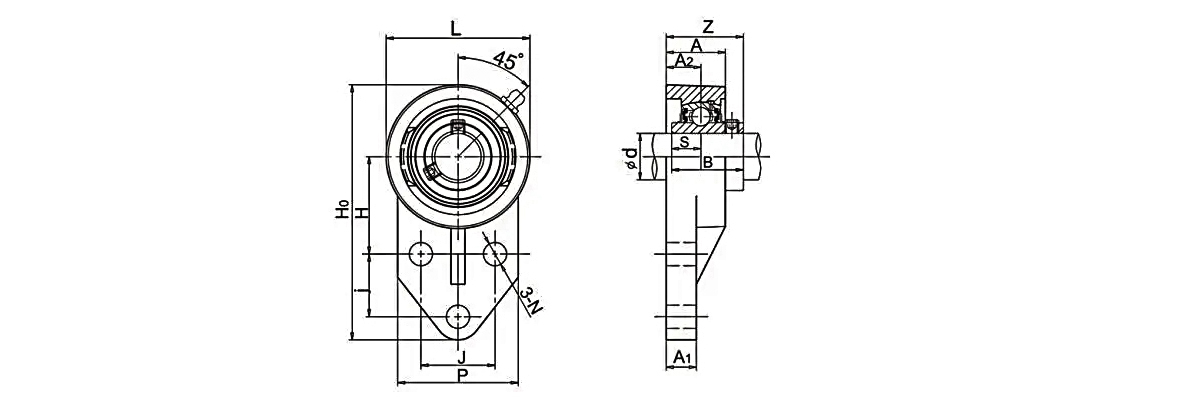

Birim No. Mil Çapı Boyutlar(mm) Cıvata Boyutu (değirmen) Ağırlık (kg)
d Ho H J j A2 A1 A N L P B S Z
(içinde) (mm)
UCFB201A 12 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB201-8A 1/2 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB202A 15 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB202-9A 9/16 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB202-10A 5/8 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB203A 17 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.57
UCFB203-11A 11/16 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.57
UCFB204A 20 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB204-12A 3/4 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB205A 25 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-14A 7/8 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-15A 15/16 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-16A 1/1 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB206A 30 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-17A 1/16 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-18A 1/8 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-19A 3/16 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-20A 1/4 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB207A 35 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-20A 1/4 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-21A 5/16 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-22A 3/8 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-23A 7/16 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB208A 40 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.8
UCFB208-24A 1/2 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.8
UCFB208-25A 9/16 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.8

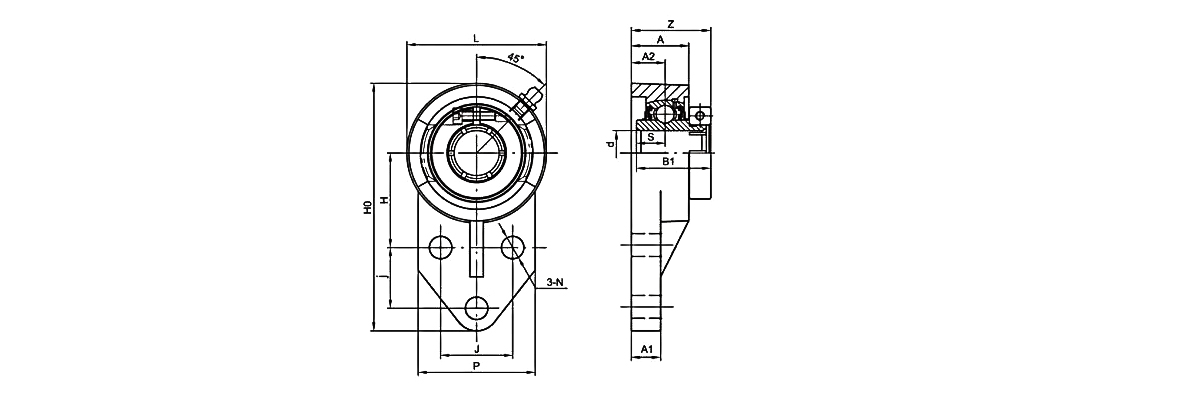

Birim No. Mil Çapı Boyutlar(mm) Cıvata Boyutu (mm) Ağırlık
(kg)
d Ho H J j A2 A1 A N L P B1 S Z
(içinde) (mm)
UEFB204 20 110 42 32 27 15 13 25.5 10 62 52 33 12.7 35.3 M8 0.692
UEFB204-12 3/4
UEFB205 25 116 45 34 27 16 13 27 10 68 56 35.4 14.3 37.1 M8 0.87
UEFB205-14 7/8
UEFB205-15 15/16
UEFB205-16 1/1
UEFB206 30 130 50 40 29 18 13 31 10 78 65 39.8 15.9 41.9 M8 1.13
UEFB206-17 1/16
UEFB206-18 1/8
UEFB206-19 3/16
UEFB206-20 1/4
UEFB207 35 144 55 46 32 19 15 34 10 90 70 43.9 17.5 45.4 M8 1.5
UEFB207-20 1/4
UEFB207-21 5/16
UEFB207-22 3/8
UEFB207-23 7/16
UEFB208 40 164 60 50 41 21 16 36 12 100 78 50.2 19 52.2 M10 2.07
UEFB208-24 1/2
UEFB208-25 9/16
UEFB209 45 174 65 54 43 22 18 38 12 106 80 50.2 19 53.2 M10 2.43
UEFB209-26 5/8
UEFB209-27 11/16
UEFB209-28 3/4
UEFB210 50 184 68 58 46 22 18 40 12 112 86 52.6 19 55.6 M10 2.8
UEFB210-30 7/8
UEFB210-31 1-15/16
UEFB210-32 1/2

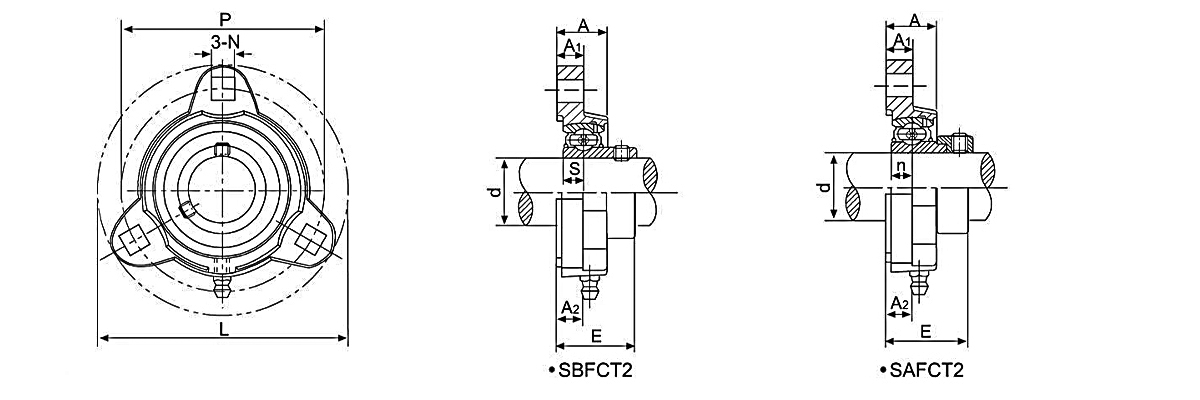

Birim No. Mil Çapı Boyutlar (mm) Cıvata Boyutu Rulman
Hayır. 		Konut Hayır. Ağırlık (kg)
d L P A1 A A2 N s E
(içinde) (mm) (mm) (içinde)
SBFCT201 12 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB201 FCT203 0.21
SBFCT201-8 1/2 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB201-8 FCT203 0.21
SBFCT202 15 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB202 FCT203 0.21
SBFCT202-10 5/8 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB202-10 FCT203 0.21
SBFCT203 17 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB203 FCT203 0.21
SBFCT203-11 11/16 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB203-11 FCT203 0.21
SBFCT204-12 3/4 90.5 71.4 11.1 19.8 11.1 8.7 7 29.1 M8 5/16 SB204-12 FCT204 0.32
SBFCT204 20 90.5 71.4 11.1 19.8 11.1 8.7 7 29.1 M8 5/16 SB204 FCT204 0.32
SBFCT205-14 7/8 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 5/16 SB205-14 FCT205 0.36
SBFCT205-15 15/16 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 5/16 SB205-15 FCT205 0.36
SBFCT205 25 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 5/16 SB205 FCT205 0.36
SBFCT205-16 1/1 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 5/16 SB205-16 FCT205 0.36
SBFCT206-18 1/8 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB206-18 FCT206 0.57
SBFCT206 30 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB206 FCT206 0.57
SBFCT206-19 3/16 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB2206-19 FCT206 0.57
SBFCT206-20 1/4 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB206-20 FCT206 0.57
SBFCT207-20 1/4 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-20 FCT207 0.71
SBFCT207-21 5/16 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-21 FCT207 0.71
SBFCT207-22 3/8 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-22 FCT207 0.71
SBFCT207 35 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB2207 FCT207 0.71
SBFCT207-23 7/16 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-23 FCT207 0.71

Birim No. Mil Çapı Boyutlar (mm) Cıvata Boyutu Rulman
Hayır. 		Konut Hayır. Ağırlık (kg)
d L P A1 A A2 s n E
(içinde) (mm) (mm) (içinde)
SAFCT201 12 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA201 FCT203 0.26
SAFCT201-8 1/2 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA201-8 FCT203 0.26
SAFCT202 15 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA202 FCT203 0.26
SAFCT202-10 5/8 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA202-10 FCT203 0.26
SAFCT203 17 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA203 FCT203 0.26
SAFCT203-11 11/16 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA203-11 FCT203 0.26
SAFCT204-12 3/4 90.5 71.4 11.1 19.8 11.1 8.7 7.5 34.5 M8 5/16 SA204-12 FCT204 0.34
SAFCT204 20 90.5 71.4 11.1 19.8 11.1 8.7 7.5 34.5 M8 5/16 SA204 FCT204 0.34
SAFCT205-14 7/8 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 5/16 SA205-14 FCT205 0.39
SAFCT205-15 15/16 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 5/16 SA205-15 FCT205 0.39
SAFCT205 25 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 5/16 SA205 FCT205 0.39
SAFCT205-16 1/1 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 5/16 SA205-16 FCT205 0.39
SAFCT206-18 1/8 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206-18 FCT206 0.61
SAFCT206 30 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206 FCT206 0.61
SAFCT206-19 3/16 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206-19 FCT206 0.61
SAFCT206-20 1/4 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206-20 FCT206 0.61
SAFCT207-20 1/4 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-20 FCT207 0.82
SAFCT207-21 5/16 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-21 FCT207 0.82
SAFCT207-22 3/8 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-22 FCT207 0.82
SAFCT207 35 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207 FCT207 0.82
SAFCT207-23 7/16 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-23 FCT207 0.82
