In the landscape of precision rotating machinery, Angular Contact Ball Bearings serve as a cornerstone for applications requiring a combination of high speeds and complex load-handling capabilities. Unlike standard radial bearings, these components are specifically engineered to manage combined loads—acting simultaneously in both radial and axial directions.
As a premier bearing factory and bearing manufacturing company in China, UKL Bearing Manufacturing Co., Ltd. (Wuxi) leverages advanced material science and precision engineering to produce angular contact solutions that define reliability in modern industry.
Understanding the Mechanics of Angular Contact
The fundamental characteristic of Angular Contact Ball Bearings is the contact angle between the balls and the raceways. This angle is formed when the bearing is subjected to an axial load, allowing the force to be transmitted from one raceway to another along a specific diagonal path.
Common contact angles include:
- 15° (C): Optimized for extremely high speeds with lower heat generation.
- 25° (AC): A balanced choice for both high speed and high axial load capacity.
- 40° (B): Designed for heavy axial loads, frequently used in pumps and vertical shafts.
The greater the contact angle, the higher the axial load-carrying capacity, whereas lower angles facilitate higher rotational velocities. At UKL, we utilize CNC grinding and honing processes to ensure these angles are maintained with microscopic precision, ensuring consistent performance across every batch.
Technical Specifications & Comparison
Choosing the right configuration is vital for equipment longevity. Below is a reference for the standard configurations we offer to our global partners:
| Feature |

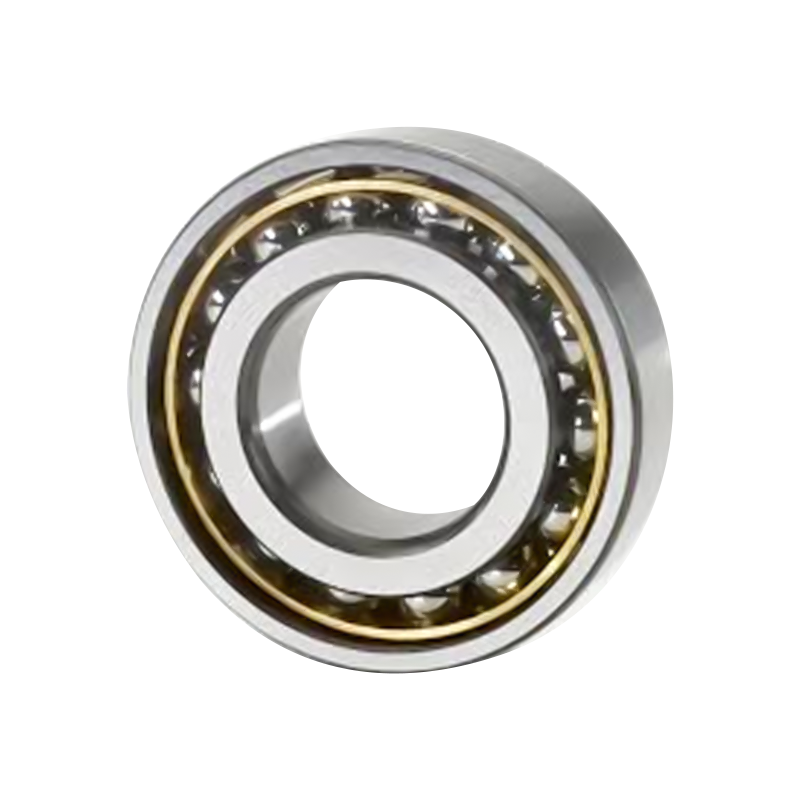

Single Row Angular Contact |

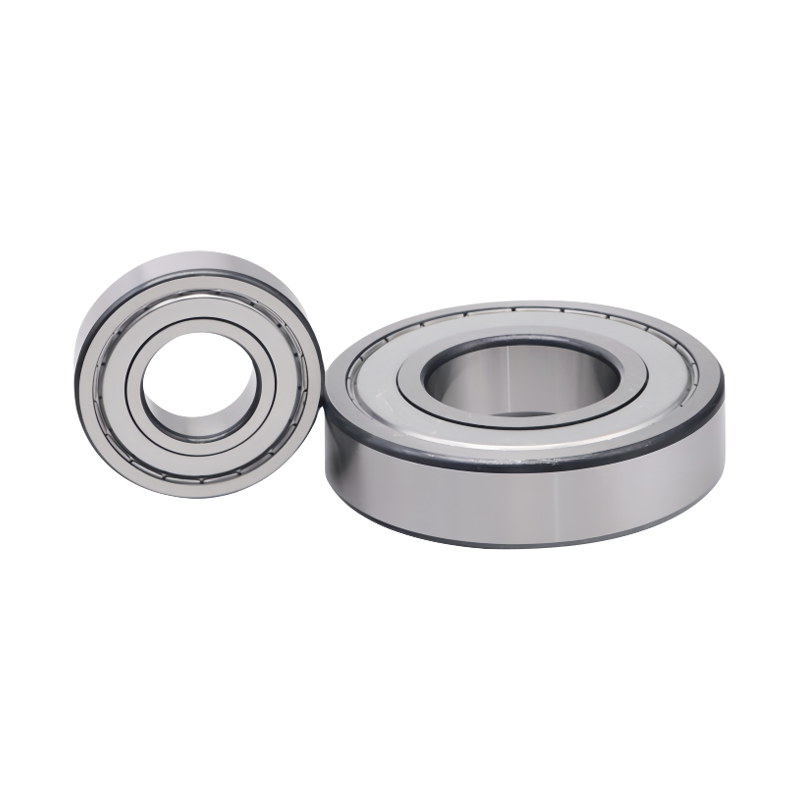

Double Row Angular Contact |

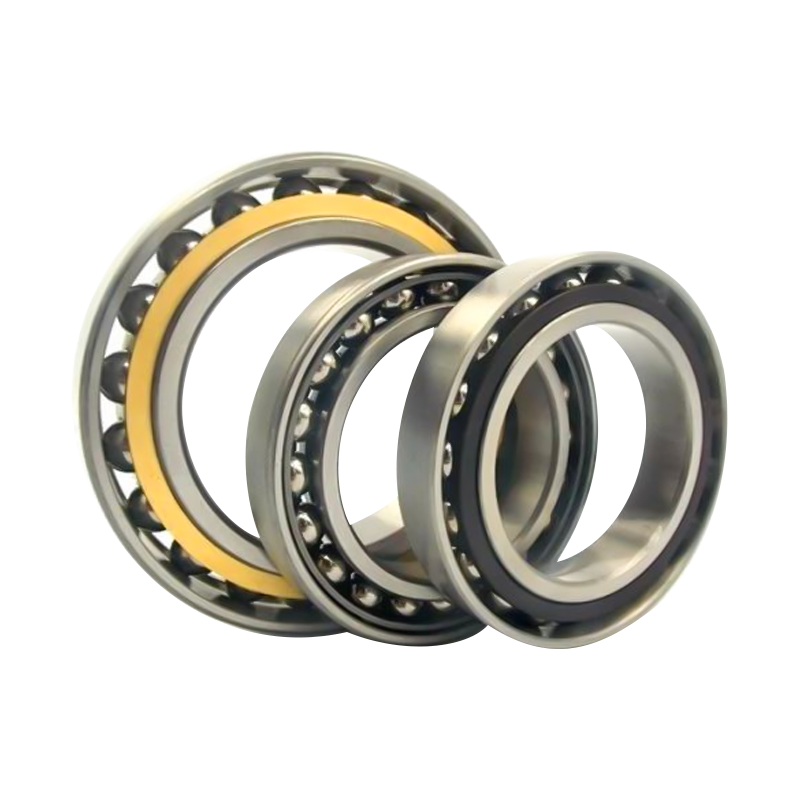

Four-Point Contact Ball Bearings |
| Load Direction |
Unidirectional Axial + Radial |
Bi-directional Axial + Radial |
Bi-directional Axial + Radial |
| Speed Rating |
Extremely High |
High |
Moderate |
| Complexity |
Simple (Requires Pairing) |
Self-contained Unit |
Single Compact Unit |
| Common Uses |
Machine Tool Spindles |
Centrifugal Pumps |
Agricultural Machinery |
| UKL Precision |
P4 / P2 Available |
P5 / P6 Available |
P6 Available |
The UKL Advantage: Integrated Production & Quality Control
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. has rapidly ascended as an integrated industrial and trading leader by focusing on the “Total Quality” approach. Our Angular Contact Ball Bearings are the result of a seamless, modernized production cycle located in Wuxi.
1. Advanced Heat Treatment & Material Purity
The lifespan of a high-speed bearing is determined by its surface fatigue strength. We utilize high-purity bearing steel subjected to specialized annealing and heat treatment cycles. This process creates a stable martensitic structure that prevents dimensional changes even during prolonged operation at elevated temperatures.
2. Precision Grinding for High-Speed Spindles
For the CNC and machine tool industries, spindle accuracy is paramount. UKL’s facilities utilize high-precision automated grinding lines to achieve P4 and P2 tolerance grades. This results in exceptionally low vibration and noise levels, which are critical for high-speed milling and grinding applications.
3. Strategic OEM/ODM Expertise
With over 15 years of export experience, we do more than manufacture; we consult. Our technical team understands the unique requirements of diverse markets in Europe, Asia, Africa, and the Middle East. We offer flexible, customized services, including specialized cage materials (such as reinforced polyamide or machined brass) and high-performance lubricants tailored to your specific environmental conditions.
4. Rigorous Automated Assembly
To eliminate human error, our assembly lines are largely automated. Each bearing undergoes stringent testing for contact angle accuracy, axial clearance, and rotational torque. This ensures that when our bearings reach your facility, they are ready to perform under the most demanding industrial pressures.
Applications Across Global Industries
Our high-performance angular contact solutions provide the technical backbone for:
- Machine Tool Spindles: Where high-speed precision and thermal stability are essential for metal cutting.
- Industrial Pumps and Compressors: Handling the constant axial thrust generated by fluid motion.
- Automotive Drivetrains: Enhancing the efficiency of high-performance transmission systems.
- Renewable Energy: Supporting the complex gearboxes found in wind turbine systems.
Frequently Asked Questions (FAQ)
1. Why are Angular Contact Ball Bearings often used in pairs?
Since a single-row angular contact bearing can only support axial loads in one direction, they are typically mounted in pairs (Back-to-Back, Face-to-Face, or Tandem). This allows the assembly to handle bidirectional axial loads and increases the overall rigidity of the shaft.
2. What cage material is best for high-speed applications?
For extremely high speeds, we often recommend Phenolic Resin or Polyamide (Nylon) cages because they are lightweight and generate less centrifugal force. For heavy-duty or high-temperature environments, Machined Brass cages offer superior durability and heat dissipation.
3. How does UKL ensure low noise levels in its bearings?
Noise is usually a result of surface roughness or contamination. We use super-finishing processes on the raceways to achieve a mirror-like surface and conduct assembly in a dust-controlled environment, followed by 100% electronic noise testing.
4. Can I customize the preload of my bearing order?
Yes. Preload is critical for controlling rigidity and vibration. We can supply bearings with light, medium, or heavy preloads, or even custom clearances based on your specific application’s thermal expansion and load profiles.
5. What is the benefit of buying directly from a Wuxi-based manufacturer like UKL?
By working with an integrated industrial and trading enterprise, you eliminate middleman markups and gain direct access to technical support. Our Wuxi location is a global hub for bearing excellence, allowing us to source the best raw materials and provide efficient logistics to our clients worldwide.
