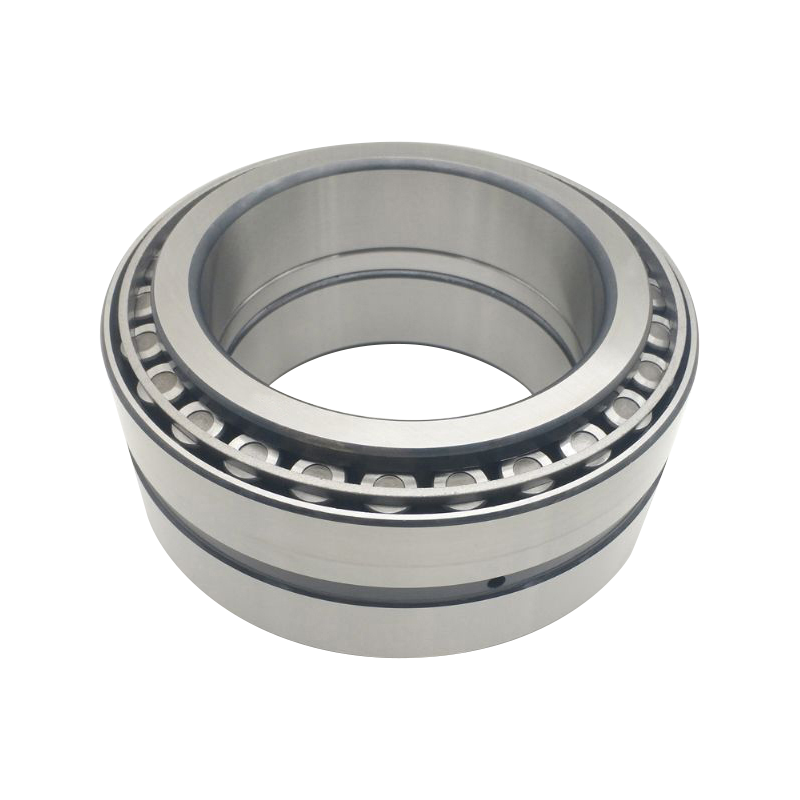

BT2B 332504/HA2 -Çift Sıralı Konik Makaralı Rulmanlar

Çift sıralı konik makaralı rulmanlar, ağır radyal ve çift yönlü eksenel yüklere aynı anda dayanacak şekilde tasarlanmış özel bir rulman türüdür. Dişli kutuları, haddehaneler ve tünel açma makineleri gibi uygulamalar için yüksek sertlikte ve geniş kapasiteli bir çözüm sunarlar. Tek sıralı rulmanlarla karşılaştırıldığında üstün sertlik, daha uzun servis ömrü ve daha düşük sürtünme sunarlar.

Bize Ulaşın

ÖNV：No previous product SONRAKİ：30202 Tek Sıralı Konik Makaralı Rulman

Açıklama
Özellikler
Bize Ulaşın

Temel Özellikler ve Avantajlar
· Ağır Yük Taşıma Kapasitesi: Yüksek radyal ve çift yönlü eksenel yükleri desteklemek üzere tasarlanmıştır.
·Yüksek Sertlik (Sertlik): Hassas uygulamalar için faydalı olan sağlam bir yatak düzeni sağlar.
·Eksenel Konum/Konumlandırma: Şaftı, ayarlanmış bir eksenel açıklık dahilinde veya bir ön yük altında her iki yönde eksenel olarak konumlandırır.
·Uzun Hizmet Ömrü: Yük dağılımını iyileştirmek, gerilimi azaltmak ve aşınma direncini artırmak için optimize edilmiş yuvarlanma yolu profillerinden yararlanır.
· Azaltılmış Sürtünme ve Gürültü: Optimize edilmiş silindir ucu tasarımları ve yüzey kaplamaları, sürtünmeyi azaltan ve gürültüyü ve titreşimi azaltabilen yağlayıcı film oluşumunu kolaylaştırır.
·Güvenilirlik: Zor koşullar altında bile operasyonel güvenilirliği artırır ve hizasızlıklara karşı daha yüksek hassasiyet sunar.

Uygulama Alanları (Uygulamalar)
· Madencilik sektöründe kaldırma ve tünel kazı ekipmanlarında kullanılırlar.
·Haddehanelerin çift sıralı konik makaralı rulmanlara olan talebi de yüksektir.

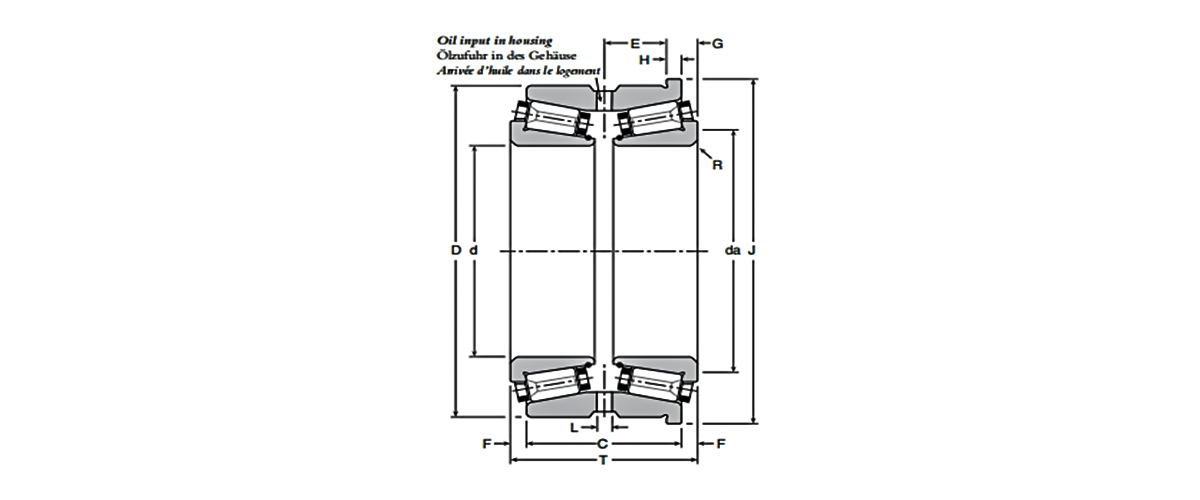

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					Dinamik	Statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Rulman
260	480		220	284	3897	6615			210	BT2B 328130 Rulman
260.35	422.275		139.7	178.592	2016	3645			86.5	BT2B 328187/HA2 Rulman
300.038	422.275		136.525	174.625	1959.3	4275			71.5	BT2B 332504/HA2 Rulman
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1 Rulman
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Rulman
340	460		128	160	1976.4	4410			71	BT2B 332830 Rulman
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Rulman
355.6	501.65		107.95	155.575	1778.4	3825			87	BT2B 332506/HA2 Rulman
360	480		128	160	1989.9	4500			73	BT2B 332831 Rulman
368.249	523.875		169.862	214.312	3042	6750			140	BT2B 332603/HA1 Rulman
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Rulman
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Rulman
400	540		135	170	2503.8	5670			106	BT2-8143/HA1 Rulman
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Rulman
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Rulman
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1 Rulman
431.8	571.5		111.125	155.575	1030.5	4590			100	BT2B 332604/HA1 Rulman
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Rulman
479.425	679.45		222.25	276.225	4509	11430			302	331657 Rulman
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Rulman
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1 Rulman
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Rulman
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Rulman
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Rulman
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Rulman
609.6	820		158.75	206.375	3618	9540			292	331500 Rulman
711.2	914.4		139.7	190.5	3420	8685			265	BT2B 328028/HA1 Rulman
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Rulman
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1 Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
762	965.2		133.35	187.325	3222	8820			290	331780 A Rulman
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Rulman
914.4	1066.8		101.6	139.7	2340	7200			190	BT2B 332501/HA5 Rulman
1160	1540		290	400	12780	34200			1900	BT2B 332780/HA5 Rulman
1250	1500		190	250	6633	20160			795	BT2B 328339/HA4 Rulman
240	480	200		220	3253.5	4950			183	BT2B 332931 Rulman
300	440	105		105	968.4	1836			48.5	332168 Rulman
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Rulman
303.212	495.3	263.525		263.525	4427.1	8820			212	BT2B 332685/HA1 Rulman
305.033	560	200		200	1509.3	4770			200	332068 Rulman
305.033	560	200		199.263	1509.3	4770			205	BT2B 334087/HA3 Rulman
305.07	500	200		200	2460.6	4680			150	332169 A Rulman
305.07	500	200		200	2460.6	4680			150	332169 AA Rulman
305.07	524	200		200	2460.6	4680			180	BT2B 334110/HA3 Rulman
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1 Rulman
320	515	160		160	2142.9	3960			160	BT2-8017/HA3 Rulman
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1 Rulman
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 A Rulman
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Rulman
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1 Rulman
346.075	488.95	95.25		104.775	607.5	2475			62	BT2B 332913/HB1 Rulman
360	560	160		160	2300.4	4185			140	BT2-8000/HA3 Rulman
380	560	200		200	2691.9	5895			165	BT2-8009/HA3 Rulman
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Rulman
384.175	546.1	193.675		193.675	3351.6	7470			166	BT2B 328580/HA1 Rulman
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Rulman
385.762	514.35	152.4		152.4	2061	5400			92	BT2B 328035/HA1 Rulman
386	574	220		220	2670.3	5895			185	BT2-8010/HA3VA901 Rulman
390	546.1	141.288		141.288	2105.1	4590			102	BT2B 328705/HA1 Rulman
390	570	200		200	2670.3	5895			170	BT2B 328896/HA3 Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
390	590	200		200	2670.3	5895			200	BT2B 328934/HA3 Rulman
390	548	180		180	2295	5265			155	BT2B 334045/HA3 Rulman
400	650	240		240	3519	7335			290	332167 Rulman
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3 Rulman
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1 Rulman
406.4	546.1	138.113		138.113	1980	4590			89	BT2B 331840 G/HA1C150 Rulman
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Rulman
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 Rulman
408.4	546.1	125		150	1766.7	4275			99	BT2B 328466/HA1 Rulman
408.4	546.1	98		120	1442.7	3105			76.5	BT2B 328874/HA1 Rulman
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Rulman
415.925	590.55	209.55		209.55	3757.5	8685			192	BT2B 328283/HA1 Rulman
420	620	200		200	2673	6480			210	BT2-8016/HA3 Rulman
430	535	84		84	972	2700			44.5	BT2B 334013/HA1 Rulman
445	620	160		160	1908	4590			135	BT2B 334069/HA3 Rulman
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Rulman
447.675	635	223.838		223.838	3960	9900			236	331562 Rulman
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 B/HB1 Rulman
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Rulman
450	595	178		178	2852.1	7335			140	BT2B 328523/HA1 Rulman
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Rulman
460	680	180		180	2826	6255			250	BT2B 334030/HA1 Rulman
464	615	136		150	1944	5265			133	BT2-8215 Rulman
482	640	160		160	1584	4680			145	BT2B 334112/HA3 Rulman
482.6	733.425	190		190	2574	7470			293	BT2-8142/HA3 Rulman
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Rulman
500	730	280		280	5940	14040			420	331676 A Rulman
501.65	711.2	250.825		250.825	4950	12330			330	331182 Rulman
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Rulman
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662 B/HB1 Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662/HB1 Rulman
536.575	761.873	269.875		269.875	5643	14400			410	331682 Rulman
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Rulman
560	820	242		242	4509	10260			425	BT2B 332626/HA7 Rulman
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 AG/HA1 Rulman
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1 Rulman
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854/HA1 Rulman
580	830	280		280	6138	14940			515	331677 Rulman
609.6	787.4	171.45		171.45	3618	9540			218	BT2B 331858/HA1 Rulman
609.6	820	171.45		171.45	3618	9540			265	BT2B 332424/HA3 Rulman
635	939.8	304.8		304.8	6039	14940			720	331555 B Rulman
650	1030	270		270	7920	16470			900	BT2B 328306/HA4 Rulman
660.4	812.8	176.212		176.212	3222	10080			195	331198 Rulman
690	980	355		355	9204.3	22500			890	BT2-8164/HA4 Rulman
800	1260	375		375	13230	30150			1850	BT2B 334032/HA4 Rulman
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Rulman
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Rulman
110	180		76	95	400	730			8.63	352122 Rulman
120	200		90	110	508	910			11.7	352124 Rulman
130	200		80	102	450	800			9.72	352026 Rulman
130	210		90	110	540	1000			13.5	352126 Rulman
140	210		82	104	480	830			10.9	352028 Rulman
140	225		90	115	560	1100			15.5	352128 Rulman
150	225		86	110	500	900			14.5	352030 Rulman
150	250		112	138	778	1560			25.8	352130 Rulman
160	240		90	116	700	1300			16.5	352032 Rulman
160	270		120	150	990	2160			34.9	352132 Rulman
170	260		100	128	830	1800			21	352034 Rulman
170	280		120	150	1100	2400			35.6	352134 Rulman
180	280		110	142	1005	2340			27.9	352036 Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
180	300		134	164	1290	2500			43.2	352136 Rulman
190	290		110	142	1005	2340			28.8	352038 Rulman
190	320		130	170	1160	2410			50.4	352138 Rulman
200	310		120	154	1500	2900			41.9	352040 Rulman
200	340		150	184	1600	3300			61.5	352140 Rulman
220	340		128	166	1210	2500			42.7	352044 Rulman
220	370		150	195	1700	3200			76.3	352144 Rulman
240	360		128	166	1430	3200			52.8	352048 Rulman
240	400		163	210	2000	4100			98.1	352148 Rulman
260	400		146	190	1530	3630			75.6	352052 Rulman
260	440		180	225	2200	4600			126	352152 Rulman
280	420		146	190	1820	4050			81.3	352056 Rulman
300	460		168	220	2200	5300			117	352060 Rulman
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Rulman
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Rulman
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT Rulman
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Rulman
31.75	72	26	46.5	51.75				9600	0.75	100031X/100072PT Rulman
31.75	76.2	26	46.5	51.75				9600	0.75	100031X/100076XPT Rulman
31.75	80	26	46.5	51.75				9600	0.75	100031X/100080PT Rulman
33.338	66.675	23.5	42.48	47.24				10400	0.63	80033X/80066XPT Rulman
33.338	68	23.5	42.48	47.24				10400	0.63	80033X/80068PT Rulman
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Rulman
34.925	76.2	26	46.5	51.75				9600	0.75	100034X/100076XPT Rulman
34.925	80	26	46.5	51.75				9600	0.75	100034X/100080PT Rulman
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT Rulman
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Rulman
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Rulman
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT Rulman
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Rulman
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT Rulman
38.1	80	26	45.5	51.25				8800	0.92	101038X/101080PT Rulman
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT Rulman
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Rulman
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Rulman
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Rulman
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT Rulman
41.275	80	26	45.5	51.25				8800	0.92	101041X/101080PT Rulman
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Rulman
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Rulman
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Rulman
44.45	88.9	28	55.66	58.83				8200	1.07	119044X/119088XPT Rulman
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT Rulman
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT Rulman
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Rulman
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Rulman
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT Rulman
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Rulman
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT Rulman
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT Rulman
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT Rulman
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Rulman
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT Rulman
50.8	96.838	29.5	54	59.5				6900	1.63	110050X/110096XPT Rulman
50.8	98.425	29.5	54	59.5				6900	1.63	110050X/110098XPT Rulman
50.8	100	29.5	54	59.5				6900	1.63	110050X/110100PT Rulman
53.975	96.838	29.5	54	59.5				6900	1.63	110053X/110096XPT Rulman
53.975	98.425	29.5	54	59.5				6900	1.63	110053X/110098XPT Rulman
53.975	100	29.5	54	59.5				6900	1.63	110053X/110100PT Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT Rulman
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT Rulman
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Rulman
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/110096XPT Rulman
57.15	98.425	29.5	54	59.5				6900	1.63	110057X/110098XPT Rulman
57.15	100	29.5	54	59.5				6900	1.63	110057X/110100PT Rulman
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Rulman
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT Rulman
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Rulman
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT Rulman
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Rulman
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT Rulman
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Rulman
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT Rulman
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Rulman
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Rulman
60.325	100	26.5	46.88	52.44				6600	1.38	113060X/113100PT Rulman
60.325	101.6	26.5	46.88	52.44				6600	1.38	113060X/113101XPT Rulman
63.5	110	33	60.3	66.65				6200	1.94	120063X/120110PT Rulman
63.5	120	32	59.88	65.44				5700	2.45	130063X/130120PT Rulman
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Rulman
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Rulman
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Rulman
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT Rulman
69.85	120	32	59.88	65.44				5700	2.32	130069X/130120PT Rulman
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Rulman
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Rulman
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT Rulman
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Rulman
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Rulman
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Rulman
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT Rulman
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT Rulman
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Rulman
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Rulman
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT Rulman
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT Rulman
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Rulman
82.55	140	38.5	69.14	77.07				4900	3.68	140082X/140140PT Rulman
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Rulman
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Rulman
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT Rulman
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Rulman
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT Rulman
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT Rulman
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT Rulman
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT Rulman
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Rulman
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT Rulman
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Rulman
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Rulman
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT Rulman
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT Rulman
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Rulman
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT Rulman
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT Rulman
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Rulman
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT Rulman
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT Rulman
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Rulman
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Rulman
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT Rulman
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT Rulman
98.425	152.4	42	75.8	83.9				4300	4.3	160098X/160152XPT Rulman
98.425	158.75	42	78.5	83.9				4300	4.3	160098X/160158XPT Rulman
98.425	160	42	78.5	83.9				4300	4.3	160098X/160160PT Rulman
98.425	161.925	42	78.5	83.9				4300	4.3	160098X/160161XPT Rulman
100	170	46	84	92				3900	7.67	180100/180170PT Rulman
100	180	46	84	92				3900	7.67	180100/180180PT Rulman
100	180.975	46	84	92				3900	7.67	180100/180180XPT Rulman
100	190	46	84	92				3900	9.58	180100/180190PT Rulman
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT Rulman
101.6	170	46	84	92				3900	7.67	180101X/180170PT Rulman
101.6	180	46	84	92				3900	7.67	180101X/180180PT Rulman
101.6	180.975	46	84	92				3900	7.81	180101X/180180XPT Rulman
101.6	190	46	84	92				3900	9.56	180101X/180190PT Rulman
105	170	46	84	92				3900	7.67	180105/180170PT Rulman
105	180	46	84	92				3900	7.67	180105/180180PT Rulman
105	180.975	46	84	92				3900	7.58	180105/180180XPT Rulman
105	190	46	84	92				3900	9.38	180105/180190PT Rulman
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT Rulman
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT Rulman
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT Rulman
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT Rulman
111.125	200.025	50	82.6	95.3				3600	8.68	181111X/181200XPT Rulman
115	165	31	55	60				3900	2.85	105115/105165PT Rulman
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT Rulman
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT Rulman
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT Rulman
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT Rulman
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Rulman
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT Rulman
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT Rulman
120	165	31	55	60				3900	2.85	105120/105165PT Rulman
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Rulman
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT Rulman
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Rulman
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Rulman
127	175	31	55	60				3900	2.85	109127X/109175PT Rulman
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT Rulman
127	200.025	42	85.74	93.67				3400	7.42	164127X/164200XPT Rulman
127	215	51	92	101				3100	11.05	200127X/200215PT Rulman
127	215.9	51	92	101				3100	11.05	200127X/200215XPT Rulman
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT Rulman
133.35	200.025	42	85.74	93.67				3400	7.42	164133X/164200XPT Rulman
133.35	215	51	92	101				3100	11.05	200133X/200215PT Rulman
133.35	215.9	51	92	101				3100	10.55	200133X/200215XPT Rulman
136.525	215	51	92	101				3100	11.05	200136X/200215PT Rulman
136.525	215.9	51	92	101				3100	10.25	200136X/200215XPT Rulman
139.7	215	51	92	101				3100	11.05	200139X/200215PT Rulman
139.7	215.9	51	92	101				3100	11.05	200139X/200215XPT Rulman
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT Rulman
140	200	42	73	80.15				3100	6.38	161140/161200PT Rulman
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT Rulman
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT Rulman
142.875	200.025	42	73	80.15				3100	6.38	161142X/161200XPT Rulman
145	241.3	59	104	115				2900	17.15	240145/240241XPT Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
145	256	51	92	101				2700	11.83	203145/203256PT Rulman
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT Rulman
150	210	42	76	84				3000	9.1	163150/163210PT Rulman
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT Rulman
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT Rulman
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT Rulman
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT Rulman
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT Rulman
156	235	51	92	101				2700	11.83	203156/203235PT Rulman
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT Rulman
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT Rulman
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT Rulman
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT Rulman
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT Rulman
185	258	50	90	100				2500	12	187185/187258PT Rulman
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT Rulman
190.5	290	52	96	105				2200	14.2	206190X/206290PT Rulman
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Rulman
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT Rulman
210	290	52	96	105				2200	13.1	206210/206290PT Rulman
210	310	72	121.08	138.54				2100	25	283210/283310PT Rulman
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT Rulman
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT Rulman
230	330	55	90.24	106.12				1900	21	244230X/244330PT Rulman
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT Rulman
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT Rulman
260	385	66	114.34	130.12				1700	32	382260/382385PT Rulman
25	52		36.5	43				13300	0.46	74025/74052GUD Rulman
30	62		42.5	51				11600	0.64	70030/70062GUD Rulman
30	66.675		42.48	52				10400	0.78	80030/80066XGUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
30	68		42.48	52				10400	0.78	80030/80068GUD Rulman
32	72		46.5	57				9600	0.825	100031X/100072GUD Rulman
32	76.2		46.5	57				9600	0.825	100031X/100076XGUD Rulman
32	80		46.5	57				9600	0.825	100031X/100080GUD Rulman
33	66.675		42.48	52				10400	0.78	80033X/80066XGUD Rulman
33	68		42.48	52				10400	0.78	80033X/80068GUD Rulman
35	72		46.5	57				9600	0.825	100034X/100072GUD Rulman
35	76.2		46.5	57				9600	0.825	100034X/100076XGUD Rulman
35	80		46.5	57				9600	0.825	100034X/100080GUD Rulman
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Rulman
35	68		42.48	52				10400	0.75	80035/80068GUD Rulman
35	72		46.5	57				9600	0.825	100035/100072GUD Rulman
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Rulman
35	80		46.5	57				9600	0.825	100035/100080GUD Rulman
36	72		36.5	42				9600	0.58	102036/102072GUD Rulman
38	76		45.5	57				8800	0.85	101038X/101076GUD Rulman
38	76.2		45.5	57				8800	0.85	101038X/101076XGUD Rulman
38	80		45.5	57				8800	0.85	101038X/101080GUD Rulman
40	76		45.5	57				8800	0.85	101040/101076GUD Rulman
40	76.2		45.5	57				8800	0.85	101040/101076XGUD Rulman
40	80		45.5	57				8800	1.025	101040/101080GUD Rulman
40	85		48.66	55				8200	1.19	112040/112085GUD Rulman
41	76		45.5	57				8800	0.85	101041X/101076GUD Rulman
41	76.2		45.5	57				8800	0.85	101041X/101076XGUD Rulman
41	80		45.5	57				8800	0.85	101041X/101080GUD Rulman
41	85		48.66	55				8200	1.07	112041X/112085GUD Rulman
44	90		51.3	64				7400	1.33	111044X/111090GUD Rulman
44	93.266		51.3	64				7400	1.33	111044X/111093XGUD Rulman
44	85		48.66	55				8200	1.07	112044X/112085GUD Rulman
44	85		55.66	62				8200	1.17	119044X/119085GUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
44	88.9		55.66	62				8200	1.17	119044X/119088XGUD Rulman
45	85		48.66	55				8200	1.07	112045/112085GUD Rulman
45	85		55.66	62				8200	1.17	119045/119085GUD Rulman
45	88.9		55.66	62				8200	1.17	119045/119088XGUD Rulman
50	90		51.3	64				7400	1.33	111050/111090GUD Rulman
50	93.266		51.3	64				7400	1.33	111050/111093XGUD Rulman
50	96.838		54	65				6900	1.945	110050/110096XGUD Rulman
50	98.425		54	65				6900	1.945	110050/110098XGUD Rulman
50	100		54	65				6900	1.945	110050/110100GUD Rulman
51	90		51.3	64				7400	1.33	111050X/111090GUD Rulman
51	96.838		54	65				6900	1.945	110050X/110096XGUD Rulman
51	98.425		54	65				6900	1.945	110050X/110098XGUD Rulman
51	100		54	65				6900	1.945	110050X/110100GUD Rulman
54	96.838		54	65				6900	1.945	110053X/110096XGUD Rulman
54	98.425		54	65				6900	1.945	110053X/110098XGUD Rulman
54	100		54	65				6900	1.945	110053X/110100GUD Rulman
55	96.838		54	65				6900	1.945	110055/110096XGUD Rulman
55	98.425		54	65				6900	1.945	110055/110098XGUD Rulman
55	100		54	65				6900	1.765	110055/110100GUD Rulman
57	96.838		54	65				6900	1.945	110057X/110096XGUD Rulman
57	98.425		54	65				6900	1.945	110057X/110098XGUD Rulman
57	100		54	65				6900	1.945	110057X/110100GUD Rulman
57	100		46.88	58				6600	1.825	113057X/113100GUD Rulman
57	101.6		46.88	58				6600	1.825	113057X/113101XGUD Rulman
57	110		60.3	73				6200	2.39	120057X/120110GUD Rulman
57	112.712		60.3	73				6200	2.39	120057X/120112XGUD Rulman
60	100		46.88	58				6600	1.825	113060/113100GUD Rulman
60	101.6		46.88	58				6600	1.825	113060/113101XGUD Rulman
60	110		60.3	73				6200	2.39	120060/120110GUD Rulman
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
60	120		59.88	71				5700	2.86	130060/130120GUD Rulman
60	127		59.88	71				5700	2.86	130060/130127GUD Rulman
60	100		46.88	58				6600	1.825	113060X/113100GUD Rulman
60	101.6		46.88	58				6600	1.825	113060X/113101XGUD Rulman
64	110		60.3	73				6200	2.21	120063X/120110GUD Rulman
64	120		59.88	71				5700	2.86	130063X/130120GUD Rulman
64	127		59.88	71				5700	2.86	130063X/130127GUD Rulman
65	120		59.88	71				5700	2.86	130065/130120GUD Rulman
65	127		59.88	71				5700	2.86	130065/130127GUD Rulman
70	112.712		60.3	73				5800	2.015	124069X/124112XGUD Rulman
70	120		59.88	71				5700	2.61	130069X/130120GUD Rulman
70	120		73.12	89				5700	2.73	135069X/135120GUD Rulman
70	127		59.88	71				5700	2.86	130069X/130127GUD Rulman
70	112.712		60.3	73				5800	2.015	124070/124112XGUD Rulman
70	120		59.88	71				5700	2.64	130070/130120GUD Rulman
70	127		59.88	71				5700	2.86	130070/130127GUD Rulman
73	120		49.7	64				5500	2.35	123073X/123120GUD Rulman
73	120.65		49.7	64				5500	2.35	123073X/123120XGUD Rulman
73	121.444		49.7	64				5500	2.35	123073X/123121XGUD Rulman
73	123.825		49.7	64				5500	2.35	123073X/123123XGUD Rulman
75	120		49.7	64				5500	2.25	123075/123120GUD Rulman
75	120.65		49.7	64				5500	2.25	123075/123120XGUD Rulman
75	121.444		49.7	64				5500	2.25	123075/123121XGUD Rulman
75	123.825		49.7	64				5500	2.25	123075/123123XGUD Rulman
75	127		60.5	73				5300	3.23	133075/133127GUD Rulman
75	130		60.5	73				5300	3.23	133075/133130GUD Rulman
75	133.35		60.5	73				5300	3.23	133075/133133XGUD Rulman
75	136.525		60.5	73				5300	3.23	133075/133136XGUD Rulman
76	120		49.7	64				5500	2.25	123076X/123120GUD Rulman
76	120.65		49.7	64				5500	2.25	123076X/123120XGUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
76	123.825		49.7	64				5500	2.25	123076X/123123XGUD Rulman
76	127		60.5	73				5300	3.23	133076X/133127GUD Rulman
76	130		60.5	73				5300	3.23	133076X/133130GUD Rulman
76	133.35		60.5	73				5300	3.23	133076X/133133XGUD Rulman
76	136.525		60.5	73				5300	3.23	133076X/133136XGUD Rulman
78	120		49.7	64				5500	2.25	123077X/123120GUD Rulman
78	120.65		49.7	64				5500	2.25	123077X/123120XGUD Rulman
78	121.444		49.7	64				5500	2.25	123077X/123121XGUD Rulman
78	123.825		49.7	64				5500	2.25	123077X/123123XGUD Rulman
80	140		69.14	85				4900	4.345	140080/140140GUD Rulman
81	133.35		58.12	74				4900	2.25	126080X/126133XGUD Rulman
83	133.35		58.12	74				4900	2.25	126082X/126133XGUD Rulman
83	136.525		58.12	74				4900	2.25	126082X/126136XGUD Rulman
83	140		69.14	85				4900	4.145	140082X/140140GUD Rulman
84	133.35		58.12	74				4900	2.4	126084X/126133XGUD Rulman
84	136.525		58.12	74				4900	2.4	126084X/126136XGUD Rulman
85	140		69.14	85				4900	3.945	140085/140140GUD Rulman
85	170		89	106				4200	8.345	210085/210170GUD Rulman
86	133.35		58.12	74				4900	2.4	126085X/126133XGUD Rulman
86	136.525		58.12	74				4900	2.4	126085X/126136XGUD Rulman
89	133.35		58.12	74				4900	2.4	126088X/126133XGUD Rulman
89	136.525		58.12	74				4900	2.4	126088X/126136XGUD Rulman
90	133.35		60.12	76				4800	3.9	117090/117133XGUD Rulman
90	170		89	106				4200	8.345	210090/210170GUD Rulman
90	150		62	75				4400	4.625	131090/131150GUD Rulman
90	152.4		62	75				4400	4.625	131090/131152XGUD Rulman
90	158.75		62	75				4400	4.625	131090/131158XGUD Rulman
90	152.4		75.8	92				4300	4.95	160090/160152XGUD Rulman
90	158.75		75.8	92				4300	4.95	160090/160158XGUD Rulman
90	160		75.8	92				4300	4.95	160090/160160GUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD Rulman
92	150		62	75				4400	4.625	131092X/131150GUD Rulman
92	152.4		62	75				4400	4.625	131092X/131152XGUD Rulman
92	158.75		62	75				4400	4.625	131092X/131158XGUD Rulman
94	152.4		62	75				4400	4.625	131093X/131152XGUD Rulman
94	150		62	75				4400	4.625	131093X/131150GUD Rulman
94	158.75		62	75				4400	4.625	131093X/131158XGUD Rulman
95	150		62	75				4400	4.625	131095/131150GUD Rulman
95	152.4		62	75				4400	4.505	131095/131152XGUD Rulman
95	158.75		62	75				4400	4.625	131095/131158XGUD Rulman
95	170		89	106				4200	8.345	210095/210170GUD Rulman
97	152.4		62	75				4400	4.345	131097/131152XGUD Rulman
97	150		62	75				4400	4.625	131097/131150GUD Rulman
97	158.75		62	75				4400	4.625	131097/131158XGUD Rulman
98	152.4		75.8	92				4300	4.95	160098X/160152XGUD Rulman
98	158.75		75.8	92				4300	4.95	160098X/160158XGUD Rulman
98	160		75.8	92				4300	4.95	160098X/160160GUD Rulman
98	161.925		75.8	92				4300	4.95	160098X/160161XGUD Rulman
100	170		84	100				3900	11	180100/180170GUD Rulman
100	180		84	100				3900	9.1	180100/180180GUD Rulman
100	180.975		84	100				3900	11	180100/180180XGUD Rulman
100	190		84	100				3900	11	180100/180190GUD Rulman
102	165.1		67.96	87				3900	9.16	141101X/141165XGUD Rulman
102	170		84	100				3900	11	180101X/180170GUD Rulman
102	180		84	100				3900	11	180101X/180180GUD Rulman
102	180.975		84	100				3900	9.28	180101X/180180XGUD Rulman
102	190		84	100				3900	10.96	180101X/180190GUD Rulman
105	170		84	100				3900	11	180105/180170GUD Rulman
105	180		84	100				3900	11	180105/180180GUD Rulman
105	180.975		84	100				3900	8.82	180105/180180XGUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
105	190		84	100				3900	10.5	180105/180190GUD Rulman
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD Rulman
111	180.975		82.6	108				3600	8.34	181111X/181180XGUD Rulman
111	190		82.6	108				3600	9.95	181111X/181190GUD Rulman
111	190.5		82.6	108				3600	10.05	181111X/181190XGUD Rulman
111	200.025		82.6	108				3600	8.34	181111X/181200XGUD Rulman
115	165		55	65				3900	3.36	105115/105165GUD Rulman
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Rulman
115	190		82.6	108				3600	9.45	181115/181190GUD Rulman
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Rulman
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Rulman
118	180.975		82.6	108				3600	7.42	181118/181180XGUD Rulman
118	190		82.6	108				3600	9.03	181118/181190GUD Rulman
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Rulman
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Rulman
120	165		55	65				3900	3.36	105120/105165GUD Rulman
120	190		82.6	108				3500	8.46	184120/184190GUD Rulman
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Rulman
120	199		82.6	108				3500	8.46	184120/184199GUD Rulman
120	200		82.6	108				3500	8.46	184120/184200GUD Rulman
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD Rulman
127	200.025		85.74	101.6				3400	8.8	164127X/164200XGUD Rulman
127	215		92	110				3100	13.54	200127X/200215GUD Rulman
127	215.9		92	110				3100	13.54	200127X/200215XGUD Rulman
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD Rulman
133	200.025		85.74	101.6				3400	8.8	164133X/164200XGUD Rulman
133	215		92	110				3100	13.54	200133X/200215GUD Rulman
133	215.9		92	110				3100	12.49	200133X/200215XGUD Rulman
137	215		92	110				3100	13.54	200136X/200215GUD Rulman
137	215.9		92	110				3100	11.97	200136X/200215XGUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
140	215		92	110				3100	13.54	200139X/200215GUD Rulman
140	215.9		92	110				3100	13.54	200139X/200215XGUD Rulman
140	241.3		104	126				2900	19.86	240139X/240241XGUD Rulman
140	200		78	92.3				3100	9.7	161140/161200GSUD Rulman
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD Rulman
143	200		78	92.3				3100	9.7	161142X/161200GSUD Rulman
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD Rulman
145	241.3		104	126				2900	18.78	240145/240241XGUD Rulman
145	256		92	110				2700	14.49	203145/203256GUD Rulman
149	241.3		104	126				2900	18.78	240149X/240241XGUD Rulman
150	210		76	92				3000	9.96	163150/163210GUD Rulman
152	222.25		81.2	105				3000	10.73	183152X/183222XGUD Rulman
152	254		116.9	155				2600	24.87	281152X/281254XGUD Rulman
152	266.7		116.9	155				2600	24.87	281152X/281266XGUD Rulman
156	254		116.9	155				2600	24.87	281155X/281254XGUD Rulman
156	266.7		116.9	155				2600	24.87	281155X/281266XGUD Rulman
156	235		92	110				2700	14.49	203156/203235GUD Rulman
165	254		88.96	108				2600	14.9	186165X/186254XGUD Rulman
170	254		88.96	108				2600	14.9	186170/186254XGUD Rulman
178	227.013		63.48	75				2700	5.93	115177X/115227XGUD Rulman
178	254		88.96	108				2600	14.9	186177X/186254XGUD Rulman
178	288.925		122.25	154				2300	31.8	280177X/280288XGUD Rulman
185	258		90	110				2500	11.94	187185/187258GUD Rulman
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Rulman
191	266.7		94.14	113.18				2400	15	204190X/204266XGUD Rulman
191	282.575		91.42	120				2300	19.3	242190X/242282XGUD Rulman
191	290		96	114				2200	17	206190X/206290GUD Rulman
203	310		121.07	156				2100	32	283203X/283310GUD Rulman
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD Rulman
210	290		96	114				2200	17	206210/206290GUD Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
210	310		121.07	156				2100	31.2	283210/283310GUD Rulman
210	317.5		121.07	156				2100	34.5	283210/283317XGUD Rulman
216	355.6		124.72	166				1900	50	284215X/284355XGUD Rulman
229	355.6		124.72	166				1900	50	284228X/284355XGUD Rulman
230	327.025		90.24	122				1900	23	244230/244327XGUD Rulman
230	330		90.24	122				1900	26.84	244230/244330GUD Rulman
235	327.025		90.24	122				1900	20	244234X/244327XGUD Rulman
235	330		90.24	122				1900	26.8	244234X/244330GUD Rulman
235	355.6		124.72	166				1900	47.43	284234X/284355XGUD Rulman
254	400.05		114.24	146				1700	53.98	382254X/382400XGUD Rulman
275	406.4		140	176				1600	65.94	320275/320406XGUD Rulman
280	406.4		140	176				1600	63.18	320280X/320406XGUD Rulman
330	482.6		158.72	200				1400	104	380330X/380482XGUD Rulman
338	419.1		79	94				1500	30.4	152338X/152419XGUD Rulman
356	482.6		100.55	145				1400	57.3	282355X/282482XGUD Rulman
381	508		147	187				1300	79.2	303381X/303508XGUD Rulman
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Rulman
432	533.4		100.78	123				1200	44.7	232431X/232533XGUD Rulman
457	596.9		147	187				1100	94.3	300457X/300596XGUD Rulman
506	636		147	187				1000	115	307506/307636GUD Rulman
25	52		36.5	43				13300	0.48	74025/74052HUWF Rulman
30	62		42.5	51				11600	0.66	70030/70062HUWF Rulman
30	66.675		42.48	52				10400	0.8	80030/80066XHUWF Rulman
30	68		42.48	52				10400	0.8	80030/80068HUWF Rulman
32	72		46.5	57				9600	0.86	100031X/100072HUWF Rulman
32	76.2		46.5	57				9600	0.86	100031X/100076XHUWF Rulman
32	80		46.5	57				9600	0.86	100031X/100080HUWF Rulman
33	66.675		42.48	52				10400	0.8	80033X/80066XHUWF Rulman
33	68		42.48	52				10400	0.8	80033X/80068HUWF Rulman
35	72		46.5	57				9600	0.86	100034X/100072HUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
35	76.2		46.5	57				9600	0.86	100034X/100076XHUWF Rulman
35	80		46.5	57				9600	0.86	100034X/100080HUWF Rulman
35	66.675		42.48	52				10400	0.74	80035/80066XHUWF Rulman
35	72		46.5	57				9600	0.855	100035/100072HUWF Rulman
35	76.2		46.5	57				9600	0.86	100035/100076XHUWF Rulman
35	80		46.5	57				9600	0.86	100035/100080HUWF Rulman
36	72		36.5	42				9600	0.595	102036/102072HUWF Rulman
38	76		45.5	57				8800	0.865	101038X/101076HUWF Rulman
38	76.2		45.5	57				8800	0.865	101038X/101076XHUWF Rulman
38	80		45.5	57				8800	0.865	101038X/101080HUWF Rulman
40	76		45.5	57				8800	0.865	101040/101076HUWF Rulman
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF Rulman
40	80		45.5	57				8800	1.07	101040/101080HUWF Rulman
40	85		48.66	55				8200	1.13	112040/112085HUWF Rulman
41	76		45.5	57				8800	0.865	101041X/101076HUWF Rulman
41	76.2		45.5	57				8800	0.865	101041X/101076XHUWF Rulman
41	80		45.5	57				8800	0.865	101041X/101080HUWF Rulman
41	85		48.66	55				8200	1.11	112041X/112085HUWF Rulman
44	85		48.66	55				8200	1.11	112044X/112085HUWF Rulman
44	85		55.66	62				8200	1.19	119044X/119085HUWF Rulman
44	88.9		55.66	62				8200	1.19	119044X/119088XHUWF Rulman
44	90		51.3	64				7400	1.38	111044X/111090HUWF Rulman
44	93.266		51.3	64				7400	1.38	111044X/111093XHUWF Rulman
45	85		48.66	55				8200	1.11	112045/112085HUWF Rulman
45	85		55.66	62				8200	1.19	119045/119085HUWF Rulman
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Rulman
50	90		51.3	64				7400	1.38	111050/111090HUWF Rulman
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF Rulman
50	96.838		54	65				6900	2.005	110050/110096XHUWF Rulman
50	98.425		54	65				6900	2.005	110050/110098XHUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
50	100		54	65				6900	2.005	110050/110100HUWF Rulman
51	90		51.3	64				7400	1.38	111050X/111090HUWF Rulman
51	96.838		54	65				6900	2.005	110050X/110096XHUWF Rulman
51	98.425		54	65				6900	2.005	110050X/110098XHUWF Rulman
51	100		54	65				6900	2.005	110050X/110100HUWF Rulman
54	96.838		54	65				6900	2.005	110053X/110096XHUWF Rulman
54	98.425		54	65				6900	2.005	110053X/110098XHUWF Rulman
54	100		54	65				6900	2.005	110053X/110100HUWF Rulman
55	96.838		54	65				6900	2.005	110055/110096XHUWF Rulman
55	98.425		54	65				6900	2.005	110055/110098XHUWF Rulman
55	100		54	65				6900	1.825	110055/110100HUWF Rulman
57	96.838		54	65				6900	2.005	110057X/110096XHUWF Rulman
57	96.838		54	65				6900	2.005	110057X/110098XHUWF Rulman
57	100		54	65				6900	2.005	110057X/110100HUWF Rulman
57	100		46.88	58				6600	1.9	113057X/113100HUWF Rulman
57	101.6		46.88	58				6600	1.9	113057X/113101XHUWF Rulman
57	110		60.3	73				6200	2.47	120057X/120110HUWF Rulman
57	112.712		60.3	73				6200	2.47	120057X/120112XHUWF Rulman
60	100		46.88	58				6600	1.9	113060/113100HUWF Rulman
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF Rulman
60	110		60.3	73				6200	2.47	120060/120110HUWF Rulman
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF Rulman
60	120		59.88	71				5700	2.96	130060/130120HUWF Rulman
60	127		59.88	71				5700	2.96	130060/130127HUWF Rulman
60	100		46.88	58				6600	1.9	113060X/113100HUWF Rulman
60	101.6		46.88	58				6600	1.9	113060X/113101XHUWF Rulman
64	110		60.3	73				6200	2.29	120063X/120110HUWF Rulman
64	120		59.88	71				5700	2.96	130063X/130120HUWF Rulman
64	127		59.88	71				5700	2.96	130063X/130127HUWF Rulman
65	120		59.88	71				5700	2.96	130065/130120HUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
65	127		59.88	71				5700	2.96	130065/130127HUWF Rulman
70	127		59.88	71				5700	2.96	130069X/130127HUWF Rulman
70	112.712		60.3	73				5800	2.085	124069X/124112XHUWF Rulman
70	120		59.88	71				5700	2.71	130069X/130120HUWF Rulman
70	120		73.12	89				5700	2.79	135069X/135120HUWF Rulman
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF Rulman
70	120		59.88	71				5700	2.7	130070/130120HUWF Rulman
70	127		59.88	71				5700	2.96	130070/130127HUWF Rulman
73	120		49.7	64				5500	2.35	123073X/123120HUWF Rulman
73	120.65		49.7	64				5500	2.35	123073X/123120XHUWF Rulman
73	121.444		49.7	64				5500	2.35	123073X/123121XHUWF Rulman
73	123.825		49.7	64				5500	2.35	123073X/123123XHUWF Rulman
75	120		49.7	64				5500	2.25	123075/123120HUWF Rulman
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF Rulman
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF Rulman
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Rulman
75	127		60.5	73				5300	3.3	133075/133127HUWF Rulman
75	130		60.5	73				5300	3.3	133075/133130HUWF Rulman
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF Rulman
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF Rulman
76	120		49.7	64				5500	2.25	123076X/123120HUWF Rulman
76	120.65		49.7	64				5500	2.25	123076X/123120XHUWF Rulman
76	123.825		49.7	64				5500	2.25	123076X/123123XHUWF Rulman
76	127		60.5	73				5300	3.3	133076X/133127HUWF Rulman
76	130		60.5	73				5300	3.3	133076X/133130HUWF Rulman
76	133.35		60.5	73				5300	3.3	133076X/133133XHUWF Rulman
76	136.525		60.5	73				5300	3.3	133076X/133136XHUWF Rulman
78	120		49.7	64				5500	2.25	123077X/123120HUWF Rulman
78	120.65		49.7	64				5500	2.25	123077X/123120XHUWF Rulman
78	121.444		49.7	64				5500	2.25	123077X/123121XHUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
78	123.825		49.7	64				5500	2.25	123077X/123123XHUWF Rulman
80	140		69.14	85				4900	4.545	140080/140140HUWF Rulman
81	133.35		58.12	74				4900	2.25	126080X/126133XHUWF Rulman
83	133.35		58.12	74				4900	2.25	126082X/126133XHUWF Rulman
83	136.525		58.12	74				4900	2.25	126082X/126136XHUWF Rulman
83	140		69.14	85				4900	4.345	140082X/140140HUWF Rulman
84	133.35		58.12	74				4900	2.4	126084X/126133XHUWF Rulman
84	136.525		58.12	74				4900	2.4	126084X/126136XHUWF Rulman
85	140		69.14	85				4900	4.145	140085/140140HUWF Rulman
85	170		89	106				4200	8.545	210085/210170HUWF Rulman
86	133.35		58.12	74				4900	2.4	126085X/126133XHUWF Rulman
86	136.525		58.12	74				4900	2.4	126085X/126136XHUWF Rulman
89	133.35		58.12	74				4900	2.4	126088X/126133XHUWF Rulman
89	136.525		58.12	74				4900	2.4	126088X/126136XHUWF Rulman
90	133.35		60.12	76				4800	4	117090/117133XHUWF Rulman
90	150		62	75				4400	4.745	131090/131150HUWF Rulman
90	152.4		62	75				4400	4.745	131090/131152XHUWF Rulman
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF Rulman
90	158.75		62	75				4400	4.745	131090/131158XHUWF Rulman
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF Rulman
90	160		75.8	92				4300	5.15	160090/160160HUWF Rulman
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF Rulman
90	170		89	106				4200	8.545	210090/210170HUWF Rulman
92	150		62	75				4400	4.745	131092X/131150HUWF Rulman
92	152.4		62	75				4400	4.745	131092X/131152XHUWF Rulman
92	158.75		62	75				4400	4.745	131092X/131158XHUWF Rulman
94	150		62	75				4400	4.745	131093X/131150HUWF Rulman
94	152.4		62	75				4400	4.745	131093X/131152XHUWF Rulman
94	158.75		62	75				4400	4.745	131093X/131158XHUWF Rulman
95	150		62	75				4400	4.745	131095/131150HUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
95	152.4		62	75				4400	4.625	131095/131152XHUWF Rulman
95	158.75		62	75				4400	4.745	131095/131158XHUWF Rulman
95	170		89	106				4200	8.545	210095/210170HUWF Rulman
97	150		62	75				4400	4.745	131097/131150HUWF Rulman
97	152.4		62	75				4400	4.465	131097/131152XHUWF Rulman
97	158.75		62	75				4400	4.745	131097/131158XHUWF Rulman
98	152.4		75.8	92				4300	5.15	160098X/160152XHUWF Rulman
98	158.75		75.8	92				4300	5.15	160098X/160158XHUWF Rulman
98	160		75.8	92				4300	5.15	160098X/160160HUWF Rulman
98	161.925		75.8	92				4300	5.15	160098X/160161XHUWF Rulman
100	170		84	100				3900	9.52	180100/180170HUWF Rulman
100	180		84	100				3900	9.42	180100/180180HUWF Rulman
100	180.975		84	100				3900	9.52	180100/180180XHUWF Rulman
100	190		84	100				3900	11.12	180100/180190HUWF Rulman
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF Rulman
102	170		84	100				3900	9.52	180101X/180170HUWF Rulman
102	180		84	100				3900	9.52	180101X/180180HUWF Rulman
102	180.975		84	100				3900	9.52	180101X/180180XHUWF Rulman
102	190		84	100				3900	11.08	180101X/180190HUWF Rulman
105	170		84	100				3900	9.52	180105/180170HUWF Rulman
105	180		84	100				3900	9.52	180105/180180HUWF Rulman
105	180.975		84	100				3900	9.06	180105/180180XHUWF Rulman
105	190		84	100				3900	10.62	180105/180190HUWF Rulman
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF Rulman
111	180.975		82.6	108				3600	8.6	181111X/181180XHUWF Rulman
111	190		82.6	108				3600	10.1	181111X/181190HUWF Rulman
111	190.5		82.6	108				3600	10.4	181111X/181190XHUWF Rulman
111	200.025		82.6	108				3600	8.6	181111X/181200XHUWF Rulman
115	165		55	65				3900	3.45	105115/105165HUWF Rulman
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
115	190		82.6	108				3600	9.6	181115/181190HUWF Rulman
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF Rulman
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF Rulman
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF Rulman
118	190		82.6	108				3600	9.18	181118/181190HUWF Rulman
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF Rulman
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF Rulman
120	165		55	65				3900	3.45	105120/105165HUWF Rulman
120	190		82.6	108				3500	8.8	184120/184190HUWF Rulman
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF Rulman
120	199		82.6	108				3500	8.8	184120/184199HUWF Rulman
120	200		82.6	108				3500	8.8	184120/184200HUWF Rulman
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF Rulman
127	200.025		85.74	101.6				3400	9.2	164127X/164200XHUWF Rulman
127	215		92	110				3100	13.9	200127X/200215HUWF Rulman
127	215.9		92	110				3100	13.9	200127X/200215XHUWF Rulman
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF Rulman
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF Rulman
133	200.025		85.74	101.6				3400	9.2	164133X/164200XHUWF Rulman
133	215		92	110				3100	13.9	200133X/200215HUWF Rulman
133	215.9		92	110				3100	12.85	200133X/200215XHUWF Rulman
137	215		92	110				3100	13.9	200136X/200215HUWF Rulman
137	215.9		92	110				3100	12.33	200136X/200215XHUWF Rulman
140	215		92	110				3100	13.9	200139X/200215HUWF Rulman
140	215.9		92	110				3100	13.9	200139X/200215XHUWF Rulman
140	241.3		104	126				2900	20.485	240139X/240241XHUWF Rulman
140	200		78	92.3				3100	10	161140/161200HSUWF Rulman
140	200.025		78	92.3				3100	10	161140/161200XHSUWF Rulman
143	200		78	92.3				3100	10	161142X/161200HSUWF Rulman
143	200.025		78	92.3				3100	10	161142X/161200XHSUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
145	241.3		104	126				2900	19.405	240145/240241XHUWF Rulman
145	256		92	110				2700	14.87	203145/203256HUWF Rulman
149	241.3		104	126				2900	20.485	240149X/240241XHUWF Rulman
150	210		76	92				3000	10.2	163150/163210HUWF Rulman
152	222.25		81.2	105				3000	11.15	183152X/183222XHUWF Rulman
152	254		116.9	155				2600	25.6	281152X/281254XHUWF Rulman
152	266.7		116.9	155				2600	25.6	281152X/281266XHUWF Rulman
156	254		116.9	155				2600	25.6	281155X/281254XHUWF Rulman
156	266.7		116.9	155				2600	25.6	281155X/281266XHUWF Rulman
156	235		92	110				2700	14.87	203156/203235HUWF Rulman
165	254		88.96	108				2600	15	186165X/186254XHUWF Rulman
170	254		88.96	108				2600	15	186170/186254XHUWF Rulman
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF Rulman
178	254		88.96	108				2600	15	186177X/186254XHUWF Rulman
178	288.925		122.25	154				2300	32.6	280177X/280288XHUWF Rulman
185	258		90	110				2500	12.3	187185/187258HUWF Rulman
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Rulman
191	266.7		94.14	113.18				2400	15.5	204190X/204266XHUWF Rulman
191	282.575		91.42	120				2300	20	242190X/242282XHUWF Rulman
191	290		96	114				2200	17.3	206190X/206290HUWF Rulman
203	310		121.08	156				2100	32.8	283203X/283310HUWF Rulman
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF Rulman
210	290		96	114				2200	17.3	206210/206290HUWF Rulman
210	310		121.08	156				2100	32	283210/283310HUWF Rulman
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF Rulman
216	355.6		124.72	166				1900	51	284215X/284355XHUWF Rulman
229	355.6		124.72	166				1900	51	284228X/284355XHUWF Rulman
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF Rulman
230	330		90.24	122				1900	27.35	244230/244330HUWF Rulman
235	327.025		90.24	122				1900	21	244234X/244327XHUWF Rulman

Temel boyutlar					Temel yük derecesi		Hız derecelendirmeleri		Kütle	Modeliiiiiiiiiiiiiiiiiiiiiiiiiii
Temel boyutlar					dinamik	statik	Referans hızı	Hızı sınırlamak	Kütle	Rulman No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[dev/dak]	[dev/dak]	[kg]	Rulman No.
235	330		90.24	122				1900	27	244234X/244330HUWF Rulman
235	355.6		124.72	166				1900	48.43	284234X/284355XHUWF Rulman
254	400.05		114.24	146				1700	55.5	382254X/382400XHUWF Rulman
275	406.4		140	176				1600	67.6	320275/320406XHUWF Rulman
280	406.4		140	176				1600	64.84	320280X/320406XHUWF Rulman
330	482.6		157.73	200				1400	105	380330X/380482XHUWF Rulman
338	419.1		79	94				1500	30.9	152338X/152419XHUWF Rulman
356	482.6		100.55	145				1400	58.7	282355X/282482XHUWF Rulman
381	508		147	187				1300	80	303381X/303508XHUWF Rulman
406	549.275		152.36	200				1200	98.25	323406XS/323549XHSUWF Rulman
432	533.4		100.78	123				1200	45	232431X/232533XHUWF Rulman
457	596.9		147	187				1100	95	300457X/300596XHUWF Rulman
506	636		147	187				1000	116	307506/307636HUWF Rulman

Hareketin Geleceğini Tasarlamak

UKL Hakkında

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 -Çift Sıralı Konik Makaralı Rulmanlar suppliers and OEM/ODM BT2B 332504/HA2 -Çift Sıralı Konik Makaralı Rulmanlar company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Hakkımızda Daha Fazla Bilgi Ukl Bearing Manufacturing Co.,Ltd

0+

yıllar

Endüstri Deneyimi
0+

Model çeşitliliği
0+

Çalışan Sayısı
0

$

Yıllık ihracat değeri

Onur Belgesi

Haberler

NU 309 Silindirik Makaralı Rulman Neden Motor ve Şanzıman Tasarımlarında Mükemmelleşiyor?
04 Jun, 2026
Temel Çıkarım: NU 309 Rulman, Hareketli Bir Rulman Olarak Mükemmelleşiyor Şaftın termal genleşmesinin kritik bir konu olduğu motor ve dişli kutusu tasarımlarında, NU 309 rulman ...

DAHA FAZLA OKUYUN
2206 AV Nilos Halkası Nasıl Takılır (Adım Adım Kılavuz)
28 May, 2026
Açık tarafı yatağa bakacak şekilde takın Doğru şekilde yüklemek için 2206AV Nilos Ring'i, dışbükey (açık) tarafı rulman yuvarlanma yoluna bakacak şekilde konumlveır...

DAHA FAZLA OKUYUN
Yüksek Hızlı Uygulamalar için Doğru Eğik Bilyalı Rulman Nasıl Seçilir?
21 May, 2026
Yüksek hızlı dönen makineler için en uygun yuvarlanma bileşeninin seçilmesi, çalışma koşullarının, iç geometrinin ve termal yönetimin derinlemesine anlaşılmasını gerektirir. Hassas makineler arasın...

DAHA FAZLA OKUYUN
Basınç Altında Hassasiyet: Tıbbi Ekipman Rulman Seçimini Etkileyen Temel Faktörler
14 May, 2026
Hızla gelişen tıbbi teknoloji alanında, en küçük bileşen bile hayat kurtaran bir cihazın başarısını belirleyebilir. Bunlar arasında, tıbbi ekipman rulmanları sessiz ama kritik bir rol...

DAHA FAZLA OKUYUN
