22205 E Rulman

Oynak Makaralı Rulmanların (SRB'ler) Avantajları ve Uygulamaları
Oynak Makaralı Rulmanlar (SRB'ler), zorlu uygulamalar için tasarlanmış son derece sağlam yuvarlanma elemanlarıdır.

Contact Us Bize Ulaşın
ÖNV：No previous product SONRAKİ：Sonraki ürün yok
  • Açıklama
  • Özellikler
  • Bize Ulaşın

Temel Özellikler ve Avantajlar
·Yüksek Radyal Yük Kapasitesi: Büyük bir radyal yük taşıma kapasitesine sahiptirler. Doğrudan silindirik bir şafta monte edilebilir veya adaptör manşonları veya çekme manşonları kullanılarak monte edilebilirler.
· Kendiliğinden Hizalama Yeteneği: Dış bileziğin küresel bir yuvarlanma yoluna sahip olması nedeniyle rulman, kendiliğinden hizalanma özelliğine sahiptir. Bu, rulmanın hizalama hatalarını (eş eksenlilik hataları) telafi etmesine ve mil ile yatak arasındaki yanlış hizalamadan veya mil sapması/bükülmesinden etkilenmemesini sağlar.
·Eksenel Yük Kapasitesi: Belirli bir düzeyde eksenel yükü karşılama kapasitesine sahiptirler.
·Yapısal Tasarım: İki sıra namlu şeklinde (küresel) makaraya sahiptirler. Dış halkanın tek bir ortak içbükey küresel yuvarlanma yolu vardır ve iç halkanın yatak eksenine belli bir açıyla eğimli iki içbükey yuvarlanma yolu vardır. Dış bilezik yuvarlanma yolunun eğrilik merkezi, yatak merkezi ile çakışmaktadır.
· Kombine ve Dinamik Yük Kapasitesi: Radyal yükleri karşılamanın yanı sıra, çift yönlü eksenel yüklere ve bunların birleşik yüklerine de dayanabilirler. Titreşim ve şok yüklere karşı iyi direnç sağlarken, büyük yük taşıma kapasitesi sunarlar.

Uygulama Alanları (Birincil Endüstriler)
Oynak Makaralı Rulmanlar, endüstrilerdeki çeşitli mekanik ekipmanlarda yaygın olarak uygulanır ve bu da onları makine sektöründe hayati bileşenler haline getirir:
·Çelik Sanayi
·Madencilik
· Kağıt Fabrikaları
·Denizcilik/Nakliye
·Tekstil Makineleri
·Kömür Pülverizatörleri (Öğütme Değirmenleri)
·Elektrik Üretimi (Elektrik Enerjisi)
·Diğer Ağır Endüstriler

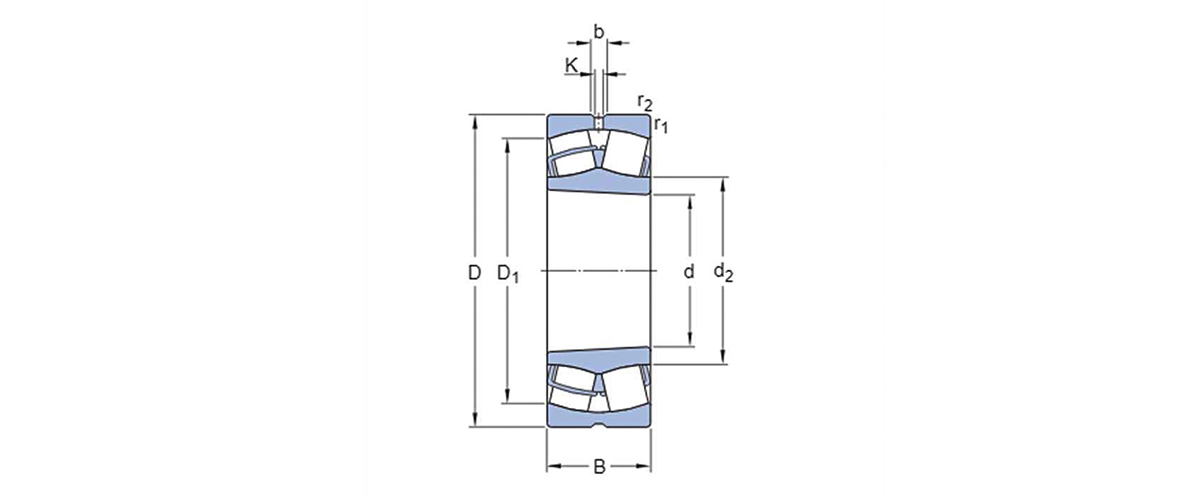

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
20 52 18 44.91 39.6 11700 15300 0.28 22205 E Rulman
25 62 17 44.19 37.35 8370 10800 0.27 21305 CC Rulman
25 52 18 44.91 39.6 11700 15300 0.18 22205 E Rulman
25 52 18 44.91 39.6 11700 15300 0.17 22205 EK Rulman
25 52 23 44.91 39.6 5490 0.26 BS2-2205-2RS/VT143 Rulman
30 72 19 59.13 54.9 7380 9000 0.41 21306 CC Rulman
30 62 20 59.49 54 9000 12600 0.28 22206 E Rulman
30 62 20 59.49 54 9000 12600 0.28 22206 EK Rulman
30 62 25 59.49 54 4590 0.34 BS2-2206-2RS/VT143 Rulman
35 80 21 71.28 64.8 6570 8550 0.54 21307 CC Rulman
35 72 23 79.92 76.5 8100 10800 0.44 22207 E Rulman
35 72 23 79.92 76.5 8100 10800 0.43 22207 EK Rulman
35 72 28 79.92 76.5 3870 0.52 BS2-2207-2RS/VT143 Rulman
40 90 23 96.3 97.2 6300 8550 0.74 21308 E Rulman
40 90 23 96.3 97.2 6300 8550 0.74 21308 EK Rulman
40 80 23 88.65 81 7200 9900 0.53 22208 E Rulman
40 80 23 88.65 81 7200 9900 0.52 22208 EK Rulman
40 90 33 139.5 126 5400 7200 1 22308 E Rulman
40 90 33 139.5 126 5400 7200 1.05 22308 E/VA405 Rulman
40 90 33 139.5 126 5400 7200 0.99 22308 EK Rulman
40 80 28 88.65 81 3510 0.57 BS2-2208-2RS/VT143 Rulman
40 80 28 88.65 81 3510 0.55 BS2-2208-2RSK/VT143 Rulman
40 90 38 139.5 126 3510 1.2 BS2-2308-2RS/VT143 Rulman
45 100 25 116.1 114.3 5670 7650 0.98 21309 E Rulman
45 100 25 116.1 114.3 5670 7650 0.97 21309 EK Rulman
45 85 23 93.6 88.2 6750 9000 0.57 22209 E Rulman
45 85 23 93.6 88.2 6750 9000 0.56 22209 EK Rulman
45 100 36 171 164.7 4770 6300 1.4 22309 E Rulman
45 100 36 171 164.7 4770 6300 1.4 22309 E/VA405 Rulman
45 100 36 171 164.7 4770 6300 1.35 22309 EK Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
45 85 28 93.6 88.2 3150 0.66 BS2-2209-2RS/VT143 Rulman
45 85 28 93.6 88.2 3150 0.66 BS2-2209-2RSK/VT143 Rulman
45 100 42 171 164.7 3060 1.6 BS2-2309-2RS/VT143 Rulman
50 110 27 143.1 149.4 5040 6750 1.3 21310 E Rulman
50 110 27 143.1 149.4 5040 6750 1.3 21310 EK Rulman
50 90 23 96.3 97.2 6300 8550 0.62 22210 E Rulman
50 90 23 96.3 97.2 6300 8550 0.61 22210 EK Rulman
50 110 40 205.2 201.6 4320 5670 1.85 22310 E Rulman
50 110 40 205.2 201.6 4320 5670 1.9 22310 E/VA405 Rulman
50 110 40 205.2 201.6 4320 5670 1.8 22310 EK Rulman
50 90 28 96.3 97.2 2880 0.7 BS2-2210-2RS/VT143 Rulman
50 90 28 96.3 97.2 2880 0.7 BS2-2210-2RSK/VT143 Rulman
50 110 45 205.2 201.6 2700 2.1 BS2-2310-2RS/VT143 Rulman
55 120 29 143.1 149.4 5040 6750 1.7 21311 E Rulman
55 120 29 143.1 149.4 5040 6750 1.65 21311 EK Rulman
55 100 25 116.1 114.3 5670 7650 0.83 22211 E Rulman
55 100 25 116.1 114.3 5670 7650 0.81 22211 EK Rulman
55 120 43 252 252 3870 5040 2.35 22311 E Rulman
55 120 43 252 252 3870 5040 2.45 22311 E/VA405 Rulman
55 120 43 252 252 3870 5040 2.3 22311 EK Rulman
55 120 43 252 252 3870 5040 2.4 22311 EK/VA405 Rulman
55 100 31 116.1 114.3 2610 1 BS2-2211-2RS/VT143 Rulman
55 100 31 116.1 114.3 2610 1 BS2-2211-2RSK/VT143 Rulman
55 120 49 252 252 2520 2.8 BS2-2311-2RS/VT143 Rulman
60 130 31 195.3 216 4320 5670 2.05 21312 E Rulman
60 130 31 195.3 216 4320 5670 2.05 21312 EK Rulman
60 110 28 143.1 149.4 5040 6750 1.15 22212 E Rulman
60 110 28 143.1 149.4 5040 6750 1.15 22212 EK Rulman
60 130 46 292.5 301.5 3600 4770 2.95 22312 E Rulman
60 130 46 292.5 301.5 3600 4770 3.1 22312 E/VA405 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
60 130 46 292.5 301.5 3600 4770 2.9 22312 EK Rulman
60 130 46 292.5 301.5 3600 4770 3.05 22312 EK/VA405 Rulman
60 110 34 143.1 149.4 2430 1.3 BS2-2212-2RS/VT143 Rulman
60 110 34 143.1 149.4 2430 1.3 BS2-2212-2RSK/VT143 Rulman
60 130 53 292.5 301.5 2250 3.4 BS2-2312-2RS/VT143 Rulman
65 140 33 218.7 243 3870 5400 2.55 21313 E Rulman
65 140 33 218.7 243 3870 5400 2.5 21313 EK Rulman
65 120 31 178.2 194.4 4500 6300 1.55 22213 E Rulman
65 120 31 178.2 194.4 4500 6300 1.5 22213 EK Rulman
65 140 48 321.3 324 3420 4500 3.5 22313 E Rulman
65 140 48 321.3 324 3420 4500 3.75 22313 E/VA405 Rulman
65 140 48 321.3 324 3420 4500 3.45 22313 EK Rulman
65 140 48 321.3 324 3420 4500 3.65 22313 EK/VA405 Rulman
65 100 35 123.3 155.7 3870 5670 0.94 24013 CC/W33 Rulman
65 100 35 123.3 155.7 3870 5670 0.93 24013 CCK30/W33 Rulman
65 100 35 123.3 155.7 2340 0.95 24013-2RS5W/VT143 Rulman
65 120 38 178.2 194.4 2160 1.6 BS2-2213-2RS/VT143 Rulman
65 120 38 178.2 194.4 2160 1.6 BS2-2213-2RSK/VT143 Rulman
65 140 56 321.3 324 2160 4.15 BS2-2313-2RS/VT143 Rulman
70 150 35 261.9 292.5 3600 5040 3.15 21314 E Rulman
70 150 35 261.9 292.5 3600 5040 3.1 21314 EK Rulman
70 125 31 191.7 205.2 4500 6030 1.6 22214 E Rulman
70 125 31 191.7 205.2 4500 6030 1.6 22214 EK Rulman
70 150 51 371.7 387 3060 4050 4.3 22314 E Rulman
70 150 51 371.7 387 3060 4050 4.55 22314 E/VA405 Rulman
70 150 51 371.7 387 3060 4050 4.25 22314 EK Rulman
70 150 51 371.7 387 3060 4050 4.45 22314 EK/VA405 Rulman
70 125 38 191.7 205.2 2070 1.8 BS2-2214-2RS/VT143 Rulman
70 125 38 191.7 205.2 2070 1.8 BS2-2214-2RSK/VT143 Rulman
70 150 60 371.7 387 1890 5.1 BS2-2314-2RS/VT143 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
75 160 37 261.9 292.5 3600 5040 3.8 21315 E Rulman
75 160 37 261.9 292.5 3600 5040 3.75 21315 EK Rulman
75 130 31 195.3 216 4320 5670 1.7 22215 E Rulman
75 130 31 195.3 216 4320 5670 1.65 22215 EK Rulman
75 160 55 415.8 427.5 2880 3870 5.25 22315 E Rulman
75 160 55 415.8 427.5 2880 3870 5.55 22315 EJA/VA405 Rulman
75 160 55 415.8 427.5 2880 3870 5.15 22315 EK Rulman
75 160 55 415.8 427.5 2880 3870 5.45 22315 EKJA/VA405 Rulman
75 115 40 162.9 208.8 3420 4770 1.4 24015 CC/W33 Rulman
75 115 40 162.9 208.8 3420 4770 1.4 24015 CCK30/W33 Rulman
75 115 40 162.9 208.8 2070 1.55 24015-2RS5/VT143 Rulman
75 130 38 195.3 216 1980 2.1 BS2-2215-2RS/VT143 Rulman
75 130 38 195.3 216 1980 2.1 BS2-2215-2RSK/VT143 Rulman
75 160 64 415.8 427.5 1890 6.5 BS2-2315-2RS/VT143 Rulman
75 160 64 415.8 427.5 1890 6.5 BS2-2315-2RSK/VT143 Rulman
80 170 39 297.9 337.5 3420 4770 4.55 21316 E Rulman
80 170 39 297.9 337.5 3420 4770 4.5 21316 EK Rulman
80 140 33 218.7 243 3870 5400 2.1 22216 E Rulman
80 140 33 218.7 243 3870 5400 2.05 22216 EK Rulman
80 170 58 464.4 477 2700 3600 6.25 22316 E Rulman
80 170 58 464.4 477 2700 3600 6.6 22316 EJA/VA405 Rulman
80 170 58 464.4 477 2700 3600 6.15 22316 EK Rulman
80 170 58 464.4 477 2700 3600 6.45 22316 EKJA/VA405 Rulman
80 140 40 218.7 243 1800 2.4 BS2-2216-2RS/VT143 Rulman
80 140 40 218.7 243 1800 2.4 BS2-2216-2RSK/VT143 Rulman
80 170 67 464.4 477 1800 7.2 BS2-2316-2RS/VT143 Rulman
80 170 67 464.4 477 1800 6.75 BS2-2316-2RSK/VT143 Rulman
85 180 41 297.9 337.5 3420 4770 5.35 21317 E Rulman
85 180 41 297.9 337.5 3420 4770 5.3 21317 EK Rulman
85 150 36 261.9 292.5 3600 5040 2.7 22217 E Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
85 150 36 261.9 292.5 3600 5040 2.65 22217 EK Rulman
85 180 60 519.3 558 2520 3420 7.3 22317 E Rulman
85 180 60 519.3 558 2520 3420 7.65 22317 EJA/VA405 Rulman
85 180 60 519.3 558 2520 3420 7.65 22317 EJA/VA406 Rulman
85 180 60 519.3 558 2520 3420 7.2 22317 EK Rulman
85 180 60 519.3 558 2520 3420 7.5 22317 EKJA/VA405 Rulman
85 150 44 261.9 292.5 1710 3 BS2-2217-2RS/VT143 Rulman
85 150 44 261.9 292.5 1710 3 BS2-2217-2RSK/VT143 Rulman
85 180 69 519.3 558 1710 8.2 BS2-2317-2RSK/VT143 Rulman
90 190 43 353.7 405 3240 4320 6.25 21318 E Rulman
90 190 43 353.7 405 3240 4320 6.2 21318 EK Rulman
90 160 40 297.9 337.5 3420 4770 3.4 22218 E Rulman
90 160 40 297.9 337.5 3420 4770 3.35 22218 EK Rulman
90 190 64 573.3 625.5 2340 3240 8.7 22318 E Rulman
90 190 64 573.3 625.5 2340 3240 9.05 22318 EJA/VA405 Rulman
90 190 64 573.3 625.5 2340 3240 8.5 22318 EK Rulman
90 190 64 573.3 625.5 2340 3240 8.85 22318 EKJA/VA405 Rulman
90 160 52.4 334.8 396 2520 3420 4.5 23218 CC/W33 Rulman
90 160 52.4 334.8 396 2520 3420 4.4 23218 CCK/W33 Rulman
90 160 48 297.9 337.5 1620 3.7 BS2-2218-2RS/VT143 Rulman
90 160 48 297.9 337.5 1620 3.7 BS2-2218-2RSK/VT143 Rulman
90 190 73 573.3 625.5 1530 9.8 BS2-2318-2RS5/VT143 Rulman
90 190 73 573.3 625.5 1530 9.8 BS2-2318-2RS5K/VT143 Rulman
95 200 45 389.7 441 3060 4050 7.2 21319 E Rulman
95 200 45 389.7 441 3060 4050 7.15 21319 EK Rulman
95 170 43 353.7 405 3240 4320 4.15 22219 E Rulman
95 170 43 353.7 405 3240 4320 4.1 22219 EK Rulman
95 200 67 629.1 688.5 2340 3060 10 22319 E Rulman
95 200 67 629.1 688.5 2340 3060 10.5 22319 EJA/VA405 Rulman
95 200 67 629.1 688.5 2340 3060 9.9 22319 EK Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
95 200 67 629.1 688.5 2340 3060 10.5 22319 EKJA/VA405 Rulman
95 170 51 353.7 405 1530 4.65 BS2-2219-2RS/VT143 Rulman
100 215 47 389.7 441 3060 4050 8.95 21320 E Rulman
100 215 47 389.7 441 3060 4050 8.85 21320 EK Rulman
100 180 46 389.7 441 3060 4050 4.95 22220 E Rulman
100 180 46 389.7 441 3060 4050 4.85 22220 EK Rulman
100 215 73 762.3 855 2160 2700 13 22320 E Rulman
100 215 73 762.3 855 2160 2700 13.5 22320 EJA/VA405 Rulman
100 215 73 762.3 855 2160 2700 13.5 22320 EJA/VA406 Rulman
100 215 73 762.3 855 2160 2700 12.5 22320 EK Rulman
100 215 73 762.3 855 2160 2700 13 22320 EKJA/VA405 Rulman
100 165 52 346.5 441 2700 3600 4.4 23120 CC/W33 Rulman
100 165 52 346.5 441 2700 3600 4.25 23120 CCK/W33 Rulman
100 165 52 347.4 441 1530 4.55 23120-2RS5/VT143 Rulman
100 180 60.3 448.2 540 2160 3060 6.6 23220 CC/W33 Rulman
100 180 60.3 448.2 540 2160 3060 6.45 23220 CCK/W33 Rulman
100 180 60.3 449.1 540 1440 6.85 23220-2RS/VT143 Rulman
100 180 60.3 449.1 540 1440 6.85 23220-2RS5/VT143 Rulman
100 180 60.3 540 18 6.71 23220/C3W33VA9B1 Rulman
100 180 60.3 540 18 6.71 23220/C4W33VA9B1 Rulman
100 150 50 266.4 373.5 2520 3600 2.95 24020 CC/W33 Rulman
100 150 50 266.4 373.5 2520 3600 2.9 24020 CCK30/W33 Rulman
100 150 50 266.4 373.5 1530 3.15 24020-2RS5/VT143 Rulman
100 165 65 421.2 576 2160 2880 5.45 24120 CC/W33 Rulman
100 165 65 421.2 576 2160 2880 5.4 24120 CCK30/W33 Rulman
100 165 65 423 576 1530 5.65 24120-2RS5/VT143 Rulman
100 180 55 389.7 441 1440 5.5 BS2-2220-2RS5/VT143 Rulman
100 180 55 389.7 441 1440 5.5 BS2-2220-2RS5K/VT143 Rulman
100 215 82 762.3 855 540 14 BS2-2320-2CS5/VT143 Rulman
100 215 82 762.3 855 540 14 BS2-2320-2CS5K/VT143 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
110 200 53 514.8 576 2700 3600 7.05 22222 E Rulman
110 200 53 514.8 576 2700 3600 6.9 22222 EK Rulman
110 240 80 890.1 1008 1800 2520 18 22322 E Rulman
110 240 80 890.1 1008 1800 2520 18.4 22322 EJA/VA405 Rulman
110 240 80 890.1 1008 1800 2520 18.4 22322 EJA/VA406 Rulman
110 240 80 890.1 1008 1800 2520 17.5 22322 EK Rulman
110 240 80 890.1 1008 1800 2520 17.4 22322 EKJA/VA405 Rulman
110 170 45 293.4 396 3060 3870 3.7 23022 CC/W33 Rulman
110 170 45 293.4 396 3060 3870 3.8 23022 CCK/W33 Rulman
110 170 45 293.4 396 1350 3.8 23022-2RS/VT143 Rulman
110 180 56 405 526.5 2520 3240 5.55 23122 CC/W33 Rulman
110 180 56 405 526.5 2520 3240 5.4 23122 CCK/W33 Rulman
110 180 56 405.9 526.5 720 5.75 23122-2CS5/VT143 Rulman
110 180 56 405.9 526.5 720 5.55 23122-2CS5K/VT143 Rulman
110 180 56 526.5 18 5.4 23122/C3W33VA9B1 Rulman
110 180 56 526.5 18 5.4 23122/C4W33VA9B1 Rulman
110 200 69.8 563.4 688.5 1980 2880 9.35 23222 CC/W33 Rulman
110 200 69.8 563.4 688.5 1980 2880 9.85 23222 CCK/W33 Rulman
110 200 69.8 564.3 688.5 576 9.55 23222-2CS5/VT143 Rulman
110 200 69.8 564.3 688.5 576 9.55 23222-2CS5K/VT143 Rulman
110 170 60 393.3 558 2160 3240 4.95 24022 CC/W33 Rulman
110 170 60 393.3 558 2160 3240 4.85 24022 CCK30/W33 Rulman
110 170 60 394.2 558 1440 5 24022-2RS5/VT143 Rulman
110 180 69 485.1 675 1800 2700 6.9 24122 CC/W33 Rulman
110 180 69 485.1 675 1800 2700 6.8 24122 CCK30/W33 Rulman
110 180 69 486 675 567 7.1 24122-2CS5/VT143 Rulman
110 180 69 675 18 7 24122/C3W33VA9B1 Rulman
110 180 69 675 18 7 24122/C4W33VA9B1 Rulman
110 200 63 514.8 576 1350 7.6 BS2-2222-2RS5/VT143 Rulman
110 200 63 514.8 576 1350 7.6 BS2-2222-2RS5K/VT143 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
120 215 58 586.8 688.5 2520 3420 8.95 22224 E Rulman
120 215 58 586.8 688.5 2520 3420 8.75 22224 EK Rulman
120 260 86 917.1 1008 1800 3510 22.5 22324 CC/C4W33VA991 Rulman
120 260 86 917.1 1008 1800 2340 22.5 22324 CC/W33 Rulman
120 260 86 917.1 1008 1800 2340 23 22324 CCJA/W33VA405 Rulman
120 260 86 917.1 1008 1800 2340 23 22324 CCJA/W33VA406 Rulman
120 260 86 917.1 1008 1800 2340 22 22324 CCK/W33 Rulman
120 260 86 917.1 1008 1800 2340 22.5 22324 CCKJA/W33VA405 Rulman
120 260 86 919.8 1008 540 23 22324-2CS5/VT143 Rulman
120 260 86 919.8 1008 540 22.5 22324-2CS5K/VT143 Rulman
120 260 86 1008 18 22 22324/C3W33VA9B1 Rulman
120 260 86 1008 18 22 22324/C4W33VA9B1 Rulman
120 180 46 329.4 450 2880 3600 4.05 23024 CC/W33 Rulman
120 180 46 329.4 450 2880 3600 3.9 23024 CCK/W33 Rulman
120 180 46 330.3 450 1260 4.2 23024-2RS5/VT143 Rulman
120 200 62 480.6 625.5 2340 3060 7.75 23124 CC/W33 Rulman
120 200 62 480.6 625.5 2340 3060 7.55 23124 CCK/W33 Rulman
120 200 62 481.5 625.5 648 7.55 23124-2CS5/VT143 Rulman
120 200 62 481.5 625.5 648 7.4 23124-2CS5K/VT143 Rulman
120 215 76 658.8 837 1800 2520 12 23224 CC/W33 Rulman
120 215 76 658.8 837 1800 2520 11.5 23224 CCK/W33 Rulman
120 215 76 660.6 837 540 12 23224-2CS5/VT143 Rulman
120 215 76 660.6 837 540 11.5 23224-2CS5K/VT143 Rulman
120 180 60 410.4 603 2160 3060 5.3 24024 CC/W33 Rulman
120 180 60 410.4 603 2160 3060 5.2 24024 CCK30/W33 Rulman
120 180 60 411.3 603 603 5.45 24024-2CS5/VT143 Rulman
120 180 60 603 18 5.36 24024/C3W33VA9B1 Rulman
120 180 60 603 18 5.36 24024/C4W33VA9B1 Rulman
120 200 80 611.1 855 1710 2340 10 24124 CC/W33 Rulman
120 200 80 611.1 855 1710 2340 9.9 24124 CCK30/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
120 200 80 612 855 504 10.3 24124-2CS5/VT143 Rulman
120 215 69 586.8 688.5 1260 9.75 BS2-2224-2RS5/VT143 Rulman
120 215 69 586.8 688.5 1260 9.75 BS2-2224-2RS5K/VT143 Rulman
130 230 64 682.2 837 2340 3240 11.5 22226 E Rulman
130 230 64 682.2 837 2340 3240 11 22226 EK Rulman
130 280 93 1058.4 1188 1620 3240 28 22326 CC/C4W33VA991 Rulman
130 280 93 1058.4 1188 1620 2160 28 22326 CC/W33 Rulman
130 280 93 1058.4 1188 1620 2160 29 22326 CCJA/W33VA405 Rulman
130 280 93 1058.4 1188 1620 2160 29 22326 CCJA/W33VA406 Rulman
130 280 93 1058.4 1188 1620 2160 27.5 22326 CCK/W33 Rulman
130 280 93 1058.4 1188 1620 2160 28.5 22326 CCKJA/W33VA405 Rulman
130 280 93 1060.2 1188 450 29 22326-2CS5/VT143 Rulman
130 280 93 1060.2 1188 450 28.5 22326-2CS5K/VT143 Rulman
130 220 73 507.6 837 1440 2160 11.5 229750 J/C3R505 Rulman
130 200 52 406.8 549 2520 3240 5.8 23026 CC/W33 Rulman
130 200 52 406.8 549 2520 3240 5.65 23026 CCK/W33 Rulman
130 200 52 406.8 549 720 6 23026-2CS5/VT143 Rulman
130 200 52 406.8 549 720 5.8 23026-2CS5K/VT143 Rulman
130 210 64 527.4 702 2160 2880 8.5 23126 CC/W33 Rulman
130 210 64 527.4 702 2160 2880 8.25 23126 CCK/W33 Rulman
130 210 64 528.3 702 603 8.1 23126-2CS5K/VT143 Rulman
130 230 80 743.4 954 1710 2340 14 23226 CC/W33 Rulman
130 230 80 743.4 954 1710 2340 14 23226 CCK/W33 Rulman
130 230 80 745.2 954 477 14.5 23226-2CS5/VT143 Rulman
130 230 80 745.2 954 477 14 23226-2CS5K/VT143 Rulman
130 200 69 512.1 733.5 1800 2700 7.75 24026 CC/W33 Rulman
130 200 69 512.1 733.5 1800 2700 7.65 24026 CCK30/W33 Rulman
130 200 69 513 747 540 8.05 24026-2CS5/VT143 Rulman
130 200 69 733.5 18 7.93 24026/C3W33VA9B1 Rulman
130 200 69 733.5 18 7.93 24026/C4W33VA9B1 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
130 210 80 629.1 900 1530 2160 10.5 24126 CC/W33 Rulman
130 210 80 629.1 900 1530 2160 10.5 24126 CCK30/W33 Rulman
130 210 80 630.9 900 477 11 24126-2CS5/VT143 Rulman
130 210 80 900 18 10.5 24126/C3W33VA9B1 Rulman
130 210 80 900 18 10.5 24126/C4W33VA9B1 Rulman
130 230 75 682.2 837 630 11 BS2-2226-2CS5/VT143 Rulman
130 230 75 682.2 837 630 10.5 BS2-2226-2CS5K/VT143 Rulman
140 250 68 668.7 810 2160 2880 14 22228 CC/W33 Rulman
140 250 68 668.7 810 2160 2880 14 22228 CCK/W33 Rulman
140 250 68 669.6 810 603 14 22228-2CS5/VT143 Rulman
140 250 68 669.6 810 603 13.5 22228-2CS5K/VT143 Rulman
140 300 102 1221.3 1404 1530 3060 35 22328 CC/C4W33VA991 Rulman
140 300 102 1221.3 1404 1530 1980 35 22328 CC/W33 Rulman
140 300 102 1221.3 1404 1530 1980 36.5 22328 CCJA/W33VA405 Rulman
140 300 102 1221.3 1404 1530 1980 36.5 22328 CCJA/W33VA406 Rulman
140 300 102 1221.3 1404 1530 1980 34.5 22328 CCK/W33 Rulman
140 300 102 1221.3 1404 1530 1980 35.5 22328 CCKJA/W33VA405 Rulman
140 300 102 1223.1 1404 387 36.5 22328-2CS5/VT143 Rulman
140 300 102 1223.1 1404 387 35.5 22328-2CS5K/VT143 Rulman
140 210 53 436.5 612 2340 3060 6.3 23028 CC/W33 Rulman
140 210 53 436.5 612 2340 3060 6.1 23028 CCK/W33 Rulman
140 210 53 436.5 612 630 6.55 23028-2CS5/VT143 Rulman
140 210 53 436.5 612 630 6.35 23028-2CS5K/VT143 Rulman
140 225 68 593.1 810 1980 2520 10.5 23128 CC/W33 Rulman
140 225 68 593.1 810 1980 2520 10 23128 CCK/W33 Rulman
140 225 68 594 810 567 9.9 23128-2CS5K/VT143 Rulman
140 250 88 865.8 1125 1530 2160 18.5 23228 CC/W33 Rulman
140 250 88 865.8 1125 1530 2160 18 23228 CCK/W33 Rulman
140 250 88 866.7 1125 432 19 23228-2CS5/VT143 Rulman
140 250 88 866.7 1125 432 18.5 23228-2CS5K/VT143 Rulman



Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
140 210 69 540 810 1800 2520 8.25 24028 CC/W33 Rulman
140 210 69 540 810 1800 2520 8.15 24028 CCK30/W33 Rulman
140 210 69 540.9 810 504 8.55 24028-2CS5/VT143 Rulman
140 210 69 810 18 8.43 24028/C3W33VA9B1 Rulman
140 210 69 810 18 8.43 24028/C4W33VA9B1 Rulman
140 225 85 716.4 1044 1440 1980 13 24128 CC/W33 Rulman
140 225 85 716.4 1044 1440 1980 12.5 24128 CCK30/W33 Rulman
140 225 85 717.3 1044 405 13.5 24128-2CS5/VT143 Rulman
140 225 85 717.3 1044 405 13.5 24128-2CS5K30/VT143 Rulman
140 225 85 1044 18 12.5 24128/C3W33VA9B1 Rulman
140 225 85 1044 18 12.5 24128/C4W33VA9B1 Rulman
150 270 73 808.2 972 1980 2700 18 22230 CC/W33 Rulman
150 270 73 808.2 972 1980 2700 17.5 22230 CCK/W33 Rulman
150 270 73 809.1 972 567 18 22230-2CS5/VT143 Rulman
150 270 73 809.1 972 567 17.5 22230-2CS5K/VT143 Rulman
150 320 108 1385.1 1584 1440 2790 42 22330 CC/C4W33VA991 Rulman
150 320 108 1385.1 1584 1440 1800 42 22330 CC/W33 Rulman
150 320 108 1385.1 1584 1440 1800 43.5 22330 CCJA/W33VA405 Rulman
150 320 108 1385.1 1584 1440 1800 43.5 22330 CCJA/W33VA406 Rulman
150 320 108 1385.1 1584 1440 1800 41 22330 CCK/W33 Rulman
150 320 108 1385.1 1584 1440 1800 42.5 22330 CCKJA/W33VA405 Rulman
150 320 108 1386.9 1584 360 43.5 22330-2CS5/VT143 Rulman
150 320 108 1386.9 1584 360 42.5 22330-2CS5K/VT143 Rulman
150 225 56 477.9 675 2160 2880 7.65 23030 CC/W33 Rulman
150 225 56 477.9 675 2160 2880 7.4 23030 CCK/W33 Rulman
150 225 56 478.8 675 603 7.95 23030-2CS5/VT143 Rulman
150 225 56 478.8 675 603 7.7 23030-2CS5K/VT143 Rulman
150 225 56 675 18 7.45 23030/C3W33VA9B1 Rulman
150 225 56 675 18 7.45 23030/C4W33VA9B1 Rulman
150 250 80 794.7 1080 1800 2340 16 23130 CC/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
150 250 80 794.7 1080 1800 2340 15.5 23130 CCK/W33 Rulman
150 250 80 795.6 1080 504 16 23130-2CS5/VT143 Rulman
150 250 80 795.6 1080 504 15.5 23130-2CS5K/VT143 Rulman
150 270 96 1016.1 1314 1440 1980 23.5 23230 CC/W33 Rulman
150 270 96 1016.1 1314 1440 1980 23 23230 CCK/W33 Rulman
150 270 96 1018.8 1314 387 24.5 23230-2CS5/VT143 Rulman
150 270 96 1018.8 1314 387 24 23230-2CS5K/VT143 Rulman
150 225 75 612 936 1620 2340 10.5 24030 CC/W33 Rulman
150 225 75 612 936 1620 2340 10 24030 CCK30/W33 Rulman
150 225 75 612.9 936 477 10.5 24030-2CS5/VT143 Rulman
150 225 75 936 18 10.3 24030/C3W33VA9B1 Rulman
150 225 75 936 18 10.3 24030/C4W33VA9B1 Rulman
150 250 100 948.6 1377 1260 1800 19.5 24130 CC/W33 Rulman
150 250 100 948.6 1377 1260 1800 19.5 24130 CCK30/W33 Rulman
150 250 100 950.4 1377 360 19.8 24130-2CS5/VT143 Rulman
150 250 100 950.4 1377 360 19.5 24130-2CS5K30/VT143 Rulman
150 250 100 1377 18 19.8 24130/C3W33VA9B1 Rulman
150 250 100 1377 18 19.8 24130/C4W33VA9B1 Rulman
160 290 80 938.7 1161 1800 2520 23 22232 CC/W33 Rulman
160 290 80 938.7 1161 1800 2520 22.5 22232 CCK/W33 Rulman
160 290 80 939.6 1161 540 22.5 22232-2CS5/VT143 Rulman
160 290 80 939.6 1161 540 22 22232-2CS5K/VT143 Rulman
160 340 114 1512 1764 1350 2610 50 22332 CC/C4W33VA991 Rulman
160 340 114 1512 1764 1350 1710 50 22332 CC/W33 Rulman
160 340 114 1512 1764 1350 1710 52 22332 CCJA/W33VA405 Rulman
160 340 114 1512 1764 1350 1710 52 22332 CCJA/W33VA406 Rulman
160 340 114 1512 1764 1350 1710 49 22332 CCK/W33 Rulman
160 340 114 1512 1764 1350 1710 51 22332 CCKJA/W33VA405 Rulman
160 340 114 1514.7 1764 342 52 22332-2CS5/VT143 Rulman
160 340 114 1514.7 1764 342 51 22332-2CS5K/VT143 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
160 340 114 1764 18 49 22332/C3W33VA9B1 Rulman
160 340 114 1764 18 49 22332/C4W33VA9B1 Rulman
160 240 60 552.6 792 2160 2700 9.25 23032 CC/W33 Rulman
160 240 60 552.6 792 2160 2700 9 23032 CCK/W33 Rulman
160 240 60 553.5 792 603 9.7 23032-2CS5/VT143 Rulman
160 240 60 553.5 792 603 9.4 23032-2CS5K/VT143 Rulman
160 270 86 926.1 1233 1710 2160 20 23132 CC/W33 Rulman
160 270 86 926.1 1233 1710 2160 19.5 23132 CCK/W33 Rulman
160 270 86 927 1260 477 20.5 23132-2CS5/VT143 Rulman
160 270 86 927 1260 477 19.9 23132-2CS5K/VT143 Rulman
160 290 104 1152.9 1494 1350 1980 29.5 23232 CC/W33 Rulman
160 290 104 1152.9 1494 1350 1980 29 23232 CCK/W33 Rulman
160 240 80 704.7 1080 1530 2160 12.5 24032 CC/W33 Rulman
160 240 80 704.7 1080 1530 2160 12.5 24032 CCK30/W33 Rulman
160 240 80 705.6 1080 405 13 24032-2CS5/VT143 Rulman
160 240 80 1080 18 12.8 24032/C3W33VA9B1 Rulman
160 240 80 1080 18 12.8 24032/C4W33VA9B1 Rulman
160 270 109 1104.3 1584 1170 1710 25 24132 CC/W33 Rulman
160 270 109 1104.3 1584 1170 1710 24.5 24132 CCK30/W33 Rulman
160 270 109 1106.1 1584 342 25 24132-2CS5/VT143 Rulman
170 310 86 1064.7 1314 1710 2340 28 22234 CC/W33 Rulman
170 310 86 1064.7 1314 1710 2340 27.5 22234 CCK/W33 Rulman
170 310 86 1066.5 1314 450 28.5 22234-2CS5/VT143 Rulman
170 310 86 1066.5 1314 450 28 22234-2CS5K/VT143 Rulman
170 360 120 1676.7 1944 1260 2430 59 22334 CC/C4W33VA991 Rulman
170 360 120 1676.7 1944 1260 1620 59 22334 CC/W33 Rulman
170 360 120 1676.7 1944 1260 1620 61 22334 CCJA/W33VA405 Rulman
170 360 120 1676.7 1944 1260 1620 61 22334 CCJA/W33VA406 Rulman
170 360 120 1676.7 1944 1260 1620 58 22334 CCK/W33 Rulman
170 360 120 1676.7 1944 1260 1620 59.5 22334 CCKJA/W33VA405 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
170 260 67 670.5 954 1980 2520 12.5 23034 CC/W33 Rulman
170 260 67 670.5 954 1980 2520 13 23034 CCK/W33 Rulman
170 260 67 671.4 972 567 13 23034-2CS5/VT143 Rulman
170 260 67 671.4 972 567 12.6 23034-2CS5K/VT143 Rulman
170 280 88 977.4 1350 1620 2160 21.5 23134 CC/W33 Rulman
170 280 88 977.4 1350 1620 2160 21 23134 CCK/W33 Rulman
170 280 88 979.2 1350 432 22 23134-2CS5/VT143 Rulman
170 280 88 979.2 1350 432 21.3 23134-2CS5K/VT143 Rulman
170 310 110 1324.8 1737 1260 1800 36 23234 CC/W33 Rulman
170 310 110 1324.8 1737 1260 1800 35 23234 CCK/W33 Rulman
170 310 110 1328.4 1764 342 35 23234-2CS5K/VT143 Rulman
170 260 90 866.7 1314 1440 2160 17 24034 CC/W33 Rulman
170 260 90 866.7 1314 1440 2160 17 24034 CCK30/W33 Rulman
170 260 90 869.4 1350 360 17.5 24034-2CS5/VT143 Rulman
170 260 90 1314 18 17.3 24034/C3W33VA9B1 Rulman
170 260 90 1314 18 17.3 24034/C4W33VA9B1 Rulman
170 280 109 1143 1674 1080 1620 26.5 24134 CC/W33 Rulman
170 280 109 1143 1674 1080 1620 26 24134 CCK30/W33 Rulman
170 280 109 1145.7 1674 324 27.5 24134-2CS5/VT143 Rulman
180 320 86 1113.3 1404 1620 2340 29.5 22236 CC/W33 Rulman
180 320 86 1113.3 1404 1620 2340 29 22236 CCK/W33 Rulman
180 320 86 1115.1 1404 477 28.9 22236-2CS5/VT143 Rulman
180 320 86 1115.1 1404 477 28.4 22236-2CS5K/VT143 Rulman
180 380 126 1869.3 2205 1170 2430 68.5 22336 CC/C4W33VA991 Rulman
180 380 126 1869.3 2205 1170 1530 68.5 22336 CC/W33 Rulman
180 380 126 1869.3 2205 1170 1530 71.5 22336 CCJA/W33VA405 Rulman
180 380 126 1869.3 2205 1170 1530 71.5 22336 CCJA/W33VA406 Rulman
180 380 126 1869.3 2205 1170 1530 67 22336 CCK/W33 Rulman
180 380 126 1869.3 2205 1170 1530 70 22336 CCKJA/W33VA405 Rulman
180 280 74 794.7 1125 1800 2340 16.5 23036 CC/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
180 280 74 794.7 1125 1800 2340 16 23036 CCK/W33 Rulman
180 280 74 795.6 1143 504 17 23036-2CS5/VT143 Rulman
180 280 74 795.6 1143 504 16.5 23036-2CS5K/VT143 Rulman
180 300 96 1136.7 1584 1530 1980 27.5 23136 CC/W33 Rulman
180 300 96 1136.7 1584 1530 1980 26.5 23136 CCK/W33 Rulman
180 300 96 1137.6 1620 387 28 23136-2CS5/VT143 Rulman
180 300 96 1137.6 1620 387 27 23136-2CS5K/VT143 Rulman
180 320 112 1401.3 1908 1170 1710 38.5 23236 CC/W33 Rulman
180 320 112 1401.3 1908 1170 1710 37.5 23236 CCK/W33 Rulman
180 320 112 1404 1908 324 38 23236-2CS5/VT143 Rulman
180 320 112 1404 1908 324 37 23236-2CS5K/VT143 Rulman
180 250 52 467.1 747 2340 2520 7.8 23936 CC/W33 Rulman
180 250 52 467.1 747 2340 2520 7.6 23936 CCK/W33 Rulman
180 280 100 1020.6 1557 1350 1980 22.5 24036 CC/W33 Rulman
180 280 100 1020.6 1557 1350 1980 22 24036 CCK30/W33 Rulman
180 280 100 1022.4 1557 342 23 24036-2CS5/VT143 Rulman
180 300 118 1304.1 1944 990 2160 33 24136 CC/C4W33VA991 Rulman
180 300 118 1304.1 1944 990 1440 33.5 24136 CC/W33 Rulman
180 300 118 1304.1 1944 990 1440 33 24136 CCK30/W33 Rulman
180 300 118 1306.8 1944 324 34.5 24136-2CS5/VT143 Rulman
190 340 92 1207.8 1530 1530 2160 35.5 22238 CC/W33 Rulman
190 340 92 1207.8 1530 1530 2160 35 22238 CCK/W33 Rulman
190 340 92 1210.5 1530 432 34.9 22238-2CS5/VT143 Rulman
190 340 92 1210.5 1530 432 33.9 22238-2CS5K/VT143 Rulman
190 400 132 2008.8 2385 1080 2250 79.5 22338 CC/C4W33VA991 Rulman
190 400 132 2008.8 2385 1080 1440 79.5 22338 CC/W33 Rulman
190 400 132 2008.8 2385 1080 1440 82.5 22338 CCJA/W33VA405 Rulman
190 400 132 2008.8 2385 1080 1440 82.5 22338 CCJA/W33VA406 Rulman
190 400 132 2008.8 2385 1080 1440 78 22338 CCK/W33 Rulman
190 400 132 2008.8 2385 1080 1440 81 22338 CCKJA/W33VA405 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
190 400 132 2012.4 2385 306 77.7 22338-2CS5/VT143 Rulman
190 290 75 824.4 1206 1710 2160 17.5 23038 CC/W33 Rulman
190 290 75 824.4 1206 1710 2160 17 23038 CCK/W33 Rulman
190 290 75 825.3 1206 468 17 23038-2CS5K/VT143 Rulman
190 320 104 1310.4 1872 1350 1800 34.5 23138 CC/W33 Rulman
190 320 104 1310.4 1872 1350 1800 33.5 23138 CCK/W33 Rulman
190 320 104 1312.2 1872 360 35 23138-2CS5/VT143 Rulman
190 320 104 1312.2 1872 360 34 23138-2CS5K/VT143 Rulman
190 340 120 1583.1 2160 1170 1620 47 23238 CC/W33 Rulman
190 340 120 1583.1 2160 1170 1620 45.5 23238 CCK/W33 Rulman
190 340 120 1585.8 2160 306 46.5 23238-2CS5/VT143 Rulman
190 340 120 1585.8 2160 306 45.5 23238-2CS5K/VT143 Rulman
190 260 52 449.1 720 2160 2340 8.05 23938 CC/W33 Rulman
190 260 52 449.1 720 2160 2340 7.8 23938 CCK/W33 Rulman
190 290 100 1047.6 1620 1260 1800 23.5 24038 CC/W33 Rulman
190 290 100 1047.6 1620 1260 1800 23 24038 CCK30/W33 Rulman
190 290 100 1048.5 1620 342 23 24038-2CS5K30/VT143 Rulman
190 320 128 1486.8 2250 990 2070 41.5 24138 CC/C4W33VA991 Rulman
190 320 128 1486.8 2250 990 1350 41.5 24138 CC/W33 Rulman
190 320 128 1486.8 2250 990 1350 41 24138 CCK30/W33 Rulman
190 320 128 1489.5 2250 306 43 24138-2CS5/VT143 Rulman
200 360 98 1373.4 1737 1440 1980 43 22240 CC/W33 Rulman
200 360 98 1373.4 1737 1440 1980 42 22240 CCK/W33 Rulman
200 360 98 1376.1 1737 387 42.1 22240-2CS5/VT143 Rulman
200 360 98 1376.1 1737 387 41.1 22240-2CS5K/VT143 Rulman
200 420 138 2195.1 2610 1080 2160 91 22340 CC/C4W33VA991 Rulman
200 420 138 2195.1 2610 1080 1350 91 22340 CC/W33 Rulman
200 420 138 2195.1 2610 1080 1350 95 22340 CCJA/W33VA405 Rulman
200 420 138 2195.1 2610 1080 1350 95 22340 CCJA/W33VA406 Rulman
200 420 138 2195.1 2610 1080 1350 89.5 22340 CCK/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
200 420 138 2195.1 2610 1080 1350 93 22340 CCKJA/W33VA405 Rulman
200 420 138 2198.7 2610 306 89.5 22340-2CS5K/VT143 Rulman
200 310 82 952.2 1377 1620 1980 22.5 23040 CC/W33 Rulman
200 310 82 952.2 1377 1620 1980 22 23040 CCK/W33 Rulman
200 310 82 953.1 1377 432 22 23040-2CS5/VT143 Rulman
200 310 82 953.1 1377 432 21.3 23040-2CS5K/VT143 Rulman
200 340 112 1498.5 2124 1350 1710 42 23140 CC/W33 Rulman
200 340 112 1498.5 2124 1350 1710 40.5 23140 CCK/W33 Rulman
200 340 112 1501.2 2124 342 43 23140-2CS5/VT143 Rulman
200 340 112 1501.2 2124 342 41.5 23140-2CS5K/VT143 Rulman
200 360 128 1752.3 2430 1080 2250 56.5 23240 CC/C4W33VA991 Rulman
200 360 128 1752.3 2430 1080 1530 56.5 23240 CC/W33 Rulman
200 360 128 1752.3 2430 1080 1530 55 23240 CCK/W33 Rulman
200 360 128 1755 2430 306 58 23240-2CS5/VT143 Rulman
200 360 128 1755 2430 306 56.5 23240-2CS5K/VT143 Rulman
200 280 60 585.9 936 1980 2160 11.5 23940 CC/W33 Rulman
200 280 60 585.9 936 1980 2160 11 23940 CCK/W33 Rulman
200 310 109 1217.7 1908 1170 1710 30 24040 CC/W33 Rulman
200 310 109 1217.7 1908 1170 1710 29.5 24040 CCK30/W33 Rulman
200 310 109 1218.6 1908 324 29.5 24040-2CS5K30/VT143 Rulman
200 340 140 1678.5 2520 900 1890 51.5 24140 CC/C4W33VA991 Rulman
200 340 140 1678.5 2520 900 1260 51.5 24140 CC/W33 Rulman
200 340 140 1678.5 2520 900 1260 51 24140 CCK30/W33 Rulman
200 340 140 1683.9 2520 288 53.5 24140-2CS5/VT143 Rulman
200 340 140 1683.9 2520 99 51 24140-2CS5K30/C3HGEA8 Rulman
220 400 108 1651.5 2124 1350 1800 59 22244 CC/W33 Rulman
220 400 108 1651.5 2124 1350 1800 58 22244 CCK/W33 Rulman
220 400 108 1655.1 2124 342 58.2 22244-2CS5/VT143 Rulman
220 400 108 1655.1 2124 342 56.7 22244-2CS5K/VT143 Rulman
220 460 145 2555.1 3105 900 1890 115 22344 CC/C4W33VA991 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
220 460 145 2555.1 3105 900 1260 115 22344 CC/W33 Rulman
220 460 145 2555.1 3105 900 1260 120 22344 CCJA/W33VA405 Rulman
220 460 145 2555.1 3105 900 1260 115 22344 CCK/W33 Rulman
220 460 145 2555.1 3105 900 1260 118 22344 CCKJA/W33VA405 Rulman
220 460 145 2559.6 3105 270 114 22344-2CS5/VT143 Rulman
220 460 145 2559.6 3105 270 114 22344-2CS5K/VT143 Rulman
220 340 90 1134.9 1674 1440 1800 29.5 23044 CC/W33 Rulman
220 340 90 1134.9 1674 1440 1800 28.5 23044 CCK/W33 Rulman
220 340 90 1135.8 1674 387 28.9 23044-2CS5/VT143 Rulman
220 340 90 1135.8 1674 387 28 23044-2CS5K/VT143 Rulman
220 370 120 1699.2 2475 1170 1530 53 23144 CC/W33 Rulman
220 370 120 1699.2 2475 1170 1530 51 23144 CCK/W33 Rulman
220 370 120 1701.9 2475 324 53.5 23144-2CS5/VT143 Rulman
220 370 120 1701.9 2475 324 52 23144-2CS5K/VT143 Rulman
220 400 144 2236.5 3105 990 1980 81.5 23244 CC/C4W33VA991 Rulman
220 400 144 2236.5 3105 990 1350 79.5 23244 CC/W33 Rulman
220 400 144 2236.5 3105 990 1350 77 23244 CCK/W33 Rulman
220 400 144 2240.1 3105 270 77 23244-2CS5K/VT143 Rulman
220 300 60 594.9 972 1800 1980 12 23944 CC/W33 Rulman
220 300 60 594.9 972 1800 1980 12 23944 CCK/W33 Rulman
220 300 60 595.8 972 540 2.5 23944-2CS/VT143 Rulman
220 340 118 1465.2 2340 1080 2340 39 24044 CC/C4W33VA991 Rulman
220 340 118 1465.2 2340 1080 1530 39 24044 CC/W33 Rulman
220 340 118 1465.2 2340 1080 1530 38.5 24044 CCK30/W33 Rulman
220 340 118 1466.1 2340 306 38.5 24044-2CS5K30/VT143 Rulman
220 370 150 1977.3 3015 765 1710 65 24144 CC/C4W33VA991 Rulman
220 370 150 1977.3 3015 765 1080 65 24144 CC/W33 Rulman
220 370 150 1977.3 3015 765 1080 64.5 24144 CCK30/W33 Rulman
220 370 150 1979.1 3015 270 64.5 24144-2CS5K30/VT143 Rulman
240 440 120 2032.2 2700 1170 1620 80 22248 CC/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
240 440 120 2032.2 2700 1170 1620 78 22248 CCK/W33 Rulman
240 500 155 2906.1 3600 855 1710 145 22348 CC/C4W33VA991 Rulman
240 500 155 2906.1 3600 855 1170 145 22348 CC/W33 Rulman
240 500 155 2906.1 3600 855 1170 155 22348 CCJA/W33VA405 Rulman
240 500 155 2906.1 3600 855 1170 140 22348 CCK/W33 Rulman
240 500 155 2906.1 3600 855 1170 152 22348 CCKJA/W33VA405 Rulman
240 360 92 1206 1872 1350 1710 32.5 23048 CC/W33 Rulman
240 360 92 1206 1872 1350 1710 31.5 23048 CCK/W33 Rulman
240 360 92 1206.9 1872 360 31.8 23048-2CS5/VT143 Rulman
240 360 92 1206.9 1872 360 30.8 23048-2CS5K/VT143 Rulman
240 400 128 1968.3 2880 1080 1440 65 23148 CC/W33 Rulman
240 400 128 1968.3 2880 1080 1440 63 23148 CCK/W33 Rulman
240 400 128 1971.9 2880 306 66.5 23148-2CS5/VT143 Rulman
240 400 128 1971.9 2880 306 64.5 23148-2CS5K/VT143 Rulman
240 440 160 2519.1 3420 855 1170 105 23248 CAC/W33 Rulman
240 440 160 2737.8 3870 855 1800 105 23248 CC/C4W33VA991 Rulman
240 440 160 2737.8 3870 855 1170 105 23248 CC/W33 Rulman
240 440 160 2737.8 3870 855 1170 105 23248 CCK/W33 Rulman
240 320 60 616.5 1044 1710 1800 13 23948 CC/W33 Rulman
240 320 60 616.5 1044 1710 1800 12.5 23948 CCK/W33 Rulman
240 360 118 1496.7 2430 990 2250 41.5 24048 CC/C4W33VA991 Rulman
240 360 118 1496.7 2430 990 1440 42 24048 CC/W33 Rulman
240 360 118 1496.7 2430 990 1440 41.5 24048 CCK30/W33 Rulman
240 360 118 1499.4 2430 288 41 24048-2CS5K30/VT143 Rulman
240 400 160 2240.1 3510 675 1530 80.5 24148 CC/C4W33VA991 Rulman
240 400 160 2240.1 3510 675 990 81 24148 CC/W33 Rulman
240 400 160 2240.1 3510 675 990 79.5 24148 CCK30/W33 Rulman
240 400 160 2241.9 3510 234 81 24148-2CS5/VT143 Rulman
240 400 160 2241.9 3510 234 80 24148-2CS5K30/VT143 Rulman
260 480 130 2449.8 3195 1080 1440 110 22252 CAC/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
260 480 130 2449.8 3195 1080 1440 108 22252 CACK/W33 Rulman
260 480 130 2449.8 3195 1080 1440 105 22252 CC/W33 Rulman
260 480 130 2449.8 3195 1080 1440 100 22252 CCK/W33 Rulman
260 540 165 3312 4095 765 1620 180 22352 CC/C4W33VA991 Rulman
260 540 165 3312 4095 765 990 180 22352 CC/W33 Rulman
260 540 165 3312 4095 765 990 175 22352 CCK/W33 Rulman
260 400 104 1507.5 2295 1170 1530 46.5 23052 CC/W33 Rulman
260 400 104 1507.5 2295 1170 1530 45 23052 CCK/W33 Rulman
260 400 104 1509.3 2295 324 45.9 23052-2CS5/VT143 Rulman
260 400 104 1509.3 2295 324 44.5 23052-2CS5K/VT143 Rulman
260 440 144 2311.2 3375 990 1260 91 23152 CAC/W33 Rulman
260 440 144 2311.2 3375 990 1260 88 23152 CACK/W33 Rulman
260 440 144 2397.6 3510 990 1260 89.5 23152 CC/W33 Rulman
260 440 144 2397.6 3510 990 1260 87 23152 CCK/W33 Rulman
260 440 144 2401.2 3510 288 90.5 23152-2CS5/VT143 Rulman
260 440 144 2401.2 3510 288 87.5 23152-2CS5K/VT143 Rulman
260 480 174 3055.5 4275 765 1080 140 23252 CAC/W33 Rulman
260 480 174 3055.5 4275 765 1080 135 23252 CACK/W33 Rulman
260 480 174 3055.5 4275 765 1620 140 23252 CC/C4W33VA991 Rulman
260 480 174 3055.5 4275 765 1080 140 23252 CC/W33 Rulman
260 480 174 3055.5 4275 765 1080 135 23252 CCK/W33 Rulman
260 360 75 949.5 1620 1530 1710 23.5 23952 CC/W33 Rulman
260 360 75 949.5 1620 1530 1710 22.5 23952 CCK/W33 Rulman
260 400 140 1921.5 3105 900 1980 63.5 24052 CC/C4W33VA991 Rulman
260 400 140 1921.5 3105 900 1260 63.5 24052 CC/W33 Rulman
260 400 140 1921.5 3105 900 1260 62.5 24052 CCK30/W33 Rulman
260 400 140 1924.2 3105 252 62.5 24052-2CS5K30/VT143 Rulman
260 440 180 2777.4 4320 603 1350 110 24152 CC/C4W33VA991 Rulman
260 440 180 2777.4 4320 603 855 110 24152 CC/W33 Rulman
260 440 180 2777.4 4320 603 855 110 24152 CCK30/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
260 440 180 2782.8 4410 216 109 24152-2CS5/VT143 Rulman
280 500 130 2515.5 3375 990 1350 109 22256 CC/W33 Rulman
280 500 130 2515.5 3375 990 1350 110 22256 CCK/W33 Rulman
280 580 175 3742.2 4680 720 1440 220 22356 CC/C4W33VA991 Rulman
280 580 175 3742.2 4680 720 990 230 22356 CC/W33 Rulman
280 580 175 3742.2 4680 720 990 225 22356 CCK/W33 Rulman
280 420 106 1572.3 2475 1170 1440 52.5 23056 CAC/W33 Rulman
280 420 106 1572.3 2475 1170 1440 52.5 23056 CACK/W33 Rulman
280 420 106 1617.3 2565 1170 1440 50.5 23056 CC/W33 Rulman
280 420 106 1617.3 2565 1170 1440 49 23056 CCK/W33 Rulman
280 460 146 2419.2 3600 900 1170 97 23156 CAC/W33 Rulman
280 460 146 2419.2 3600 900 1170 94 23156 CACK/W33 Rulman
280 460 146 2505.6 3825 900 1170 96 23156 CC/W33 Rulman
280 460 146 2505.6 3825 900 1170 93 23156 CCK/W33 Rulman
280 460 146 2509.2 3825 270 97 23156-2CS5/VT143 Rulman
280 460 146 2509.2 3825 270 94.8 23156-2CS5K/VT143 Rulman
280 500 176 3082.5 4410 720 990 150 23256 CAC/W33 Rulman
280 500 176 3082.5 4410 720 990 145 23256 CACK/W33 Rulman
280 500 176 3082.5 4410 720 1530 145 23256 CC/C4W33VA991 Rulman
280 500 176 3082.5 4410 720 990 145 23256 CC/W33 Rulman
280 500 176 3082.5 4410 720 990 140 23256 CCK/W33 Rulman
280 380 75 914.4 1584 1440 1530 24 23956 CC/W33 Rulman
280 380 75 914.4 1584 1440 1530 23.5 23956 CCK/W33 Rulman
280 420 140 2023.2 3420 855 1890 68 24056 CC/C4W33VA991 Rulman
280 420 140 2023.2 3420 855 1260 68 24056 CC/W33 Rulman
280 420 140 2023.2 3420 855 1260 67 24056 CCK30/W33 Rulman
280 420 140 2025 3420 241.2 66.5 24056-2CS5K30/VT143 Rulman
280 460 180 2864.7 4590 567 1170 115 24156 CC/C4W33VA991 Rulman
280 460 180 2864.7 4590 567 810 120 24156 CC/W33 Rulman
280 460 180 2864.7 4590 567 810 115 24156 CCK30/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
280 460 180 2871 4590 198 115 24156-2CS5/VT143 Rulman
280 460 180 2871 4590 198 115 24156-2CS5K30/VT143 Rulman
300 540 140 2915.1 3825 900 1260 145 22260 CC/W33 Rulman
300 540 140 2915.1 3825 900 1260 140 22260 CCK/W33 Rulman
300 460 118 1938.6 3015 1080 1350 71.5 23060 CAC/W33 Rulman
300 460 118 1938.6 3015 1080 1350 71.5 23060 CACK/W33 Rulman
300 460 118 1997.1 3105 1080 1350 70 23060 CC/W33 Rulman
300 460 118 1997.1 3105 1080 1350 68.5 23060 CCK/W33 Rulman
300 460 118 1999.8 3105 288 71.5 23060-2CS5/VT143 Rulman
300 460 118 1999.8 3105 288 69.5 23060-2CS5K/VT143 Rulman
300 500 160 2821.5 4185 855 1080 125 23160 CAC/W33 Rulman
300 500 160 2821.5 4185 855 1080 125 23160 CACK/W33 Rulman
300 500 160 3031.2 4590 855 1080 130 23160 CC/W33 Rulman
300 500 160 3031.2 4590 855 1080 125 23160 CCK/W33 Rulman
300 500 160 3035.7 4590 234 125 23160-2CS5/VT143 Rulman
300 500 160 3035.7 4590 234 121 23160-2CS5K/VT143 Rulman
300 540 192 3646.8 5265 675 900 190 23260 CAC/W33 Rulman
300 540 192 3646.8 5265 675 900 185 23260 CACK/W33 Rulman
300 540 192 3646.8 5265 675 1440 185 23260 CC/C4W33VA991 Rulman
300 540 192 3646.8 5265 675 900 195 23260 CC/W33 Rulman
300 540 192 3646.8 5265 675 900 190 23260 CCK/W33 Rulman
300 420 90 1271.7 2250 1260 1440 39 23960 CC/W33 Rulman
300 420 90 1271.7 2250 1260 1440 37.5 23960 CCK/W33 Rulman
300 460 160 2461.5 4050 765 1080 97 24060 CAC/W33 Rulman
300 460 160 2461.5 4050 765 1080 95.5 24060 CACK30/W33 Rulman
300 460 160 2538.9 4275 765 1710 96 24060 CC/C4W33VA991 Rulman
300 460 160 2538.9 4275 765 1080 96 24060 CC/W33 Rulman
300 460 160 2538.9 4275 765 1080 94.5 24060 CCK30/W33 Rulman
300 460 160 2544.3 4275 216 95 24060-2CS5/VT143 Rulman
300 500 200 3488.4 5670 504 1080 160 24160 CC/C4W33VA991 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
300 500 200 3488.4 5670 504 720 160 24160 CC/W33 Rulman
300 500 200 3488.4 5670 504 720 155 24160 CCK30/W33 Rulman
300 500 200 3492.9 5670 190.8 156 24160-2CS5/VT143 Rulman
300 500 200 3492.9 5670 190.8 153 24160-2CS5K30/VT143 Rulman
320 580 150 3337.2 4410 855 1170 165 22264 CC/W33 Rulman
320 580 150 3337.2 4410 855 1170 165 22264 CCK/W33 Rulman
320 480 121 2113.2 3420 990 1260 76.5 23064 CC/W33 Rulman
320 480 121 2113.2 3420 990 1260 74 23064 CCK/W33 Rulman
320 540 176 3287.7 4950 765 990 165 23164 CAC/W33 Rulman
320 540 176 3287.7 4950 765 990 165 23164 CACK/W33 Rulman
320 540 176 3530.7 5400 765 990 165 23164 CC/W33 Rulman
320 540 176 3530.7 5400 765 990 160 23164 CCK/W33 Rulman
320 540 176 3536.1 5490 234 165 23164-2CS5/VT143 Rulman
320 540 176 3536.1 5490 234 160 23164-2CS5K/VT143 Rulman
320 580 208 4146.3 6030 630 855 240 23264 CAC/W33 Rulman
320 580 208 4146.3 6030 630 855 235 23264 CACK/W33 Rulman
320 580 208 4146.3 6030 630 1260 250 23264 CC/C4W33VA991 Rulman
320 580 208 4146.3 6030 630 855 250 23264 CC/W33 Rulman
320 580 208 4146.3 6030 630 855 240 23264 CCK/W33 Rulman
320 440 90 1332 2430 1260 1350 41 23964 CC/W33 Rulman
320 440 90 1332 2430 1260 1350 39.5 23964 CCK/W33 Rulman
320 480 160 2672.1 4590 720 1620 100 24064 CC/C4W33VA991 Rulman
320 480 160 2672.1 4590 720 1080 100 24064 CC/W33 Rulman
320 480 160 2672.1 4590 720 1080 100 24064 CCK30/W33 Rulman
320 540 218 3955.5 6390 450 990 195 24164 CC/C4W33VA991 Rulman
320 540 218 3955.5 6390 450 630 195 24164 CC/W33 Rulman
320 540 218 3955.5 6390 450 630 190 24164 CCK30/W33 Rulman
320 540 218 3956.4 6390 63 200 24164-2CS5K30/C3HGEA8 Rulman
340 520 133 2530.8 4095 900 1170 105 23068 CAC/W33 Rulman
340 520 133 2530.8 4095 900 1170 105 23068 CACK/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
340 520 133 2530.8 4095 900 1170 100 23068 CC/W33 Rulman
340 520 133 2530.8 4095 900 1170 98 23068 CCK/W33 Rulman
340 580 190 3856.5 5895 720 900 210 23168 CAC/W33 Rulman
340 580 190 3856.5 5895 720 900 205 23168 CACK/W33 Rulman
340 580 190 4000.5 6120 720 900 220 23168 CC/W33 Rulman
340 580 190 4000.5 6120 720 900 215 23168 CCK/W33 Rulman
340 580 190 4006.8 6120 216 210 23168-2CS5/VT143 Rulman
340 580 190 4007.7 6120 216 206 23168-2CS5K/VT143 Rulman
340 620 224 4825.8 7020 504 720 295 23268 CA/W33 Rulman
340 620 224 4825.8 7020 504 720 285 23268 CAK/W33 Rulman
340 460 90 1341 2520 1170 1260 43.5 23968 CC/W33 Rulman
340 460 90 1341 2520 1170 1260 42 23968 CCK/W33 Rulman
340 520 180 3258.9 5580 675 1440 135 24068 CC/C4W33VA991 Rulman
340 520 180 3258.9 5580 675 990 140 24068 CC/W33 Rulman
340 520 180 3258.9 5580 675 990 135 24068 CCK30/W33 Rulman
340 580 243 4938.3 7785 387 567 270 24168 ECAC/W33 Rulman
340 580 243 4938.3 7785 387 567 265 24168 ECACK30/W33 Rulman
340 580 243 4938.3 7785 387 567 255 24168 ECCJ/W33 Rulman
340 580 243 4938.3 7785 387 567 250 24168 ECCK30J/W33 Rulman
360 650 170 3987 5580 567 765 250 22272 CA/W33 Rulman
360 650 170 3987 5580 567 765 245 22272 CAK/W33 Rulman
360 540 134 2495.7 4185 855 1080 110 23072 CAC/W33 Rulman
360 540 134 2495.7 4185 855 1080 110 23072 CACK/W33 Rulman
360 540 134 2565 4320 855 1080 110 23072 CC/W33 Rulman
360 540 134 2565 4320 855 1080 105 23072 CCK/W33 Rulman
360 600 192 4063.5 6255 675 900 230 23172 CC/W33 Rulman
360 600 192 4063.5 6255 675 900 220 23172 CCK/W33 Rulman
360 600 192 4068.9 6255 198 213 23172-2CS5/VT143 Rulman
360 600 192 4068.9 6255 198 206 23172-2CS5K/VT143 Rulman
360 650 232 5096.7 7470 477 675 335 23272 CA/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
360 650 232 5096.7 7470 477 675 325 23272 CAK/W33 Rulman
360 650 232 5102.1 7470 144 332 23272-2CS5/VT143 Rulman
360 650 232 5102.1 7470 144 322 23272-2CS5K/VT143 Rulman
360 480 90 1310.4 2475 1080 1170 45 23972 CC/W33 Rulman
360 480 90 1310.4 2475 1080 1170 43.5 23972 CCK/W33 Rulman
360 540 180 3334.5 5895 630 1440 145 24072 CC/C4W33VA991 Rulman
360 540 180 3334.5 5895 630 900 155 24072 CC/W33 Rulman
360 540 180 3334.5 5895 630 900 150 24072 CCK30/W33 Rulman
360 600 243 5163.3 8370 360 540 270 24172 ECCJ/W33 Rulman
360 600 243 5163.3 8370 360 540 270 24172 ECCK30J/W33 Rulman
360 600 243 5174.1 8370 216 270 24172-2CS5/VT143 Rulman
380 560 135 2612.7 4410 810 1080 110 23076 CAC/W33 Rulman
380 560 135 2612.7 4410 810 1080 110 23076 CACK/W33 Rulman
380 560 135 2685.6 4500 810 1080 110 23076 CC/W33 Rulman
380 560 135 2685.6 4500 810 1080 110 23076 CCK/W33 Rulman
380 560 135 2688.3 4500 234 110 23076-2CS5/VT143 Rulman
380 620 194 4104.9 6390 504 900 230 23176 CA/W33 Rulman
380 620 194 4104.9 6390 504 900 225 23176 CAK/W33 Rulman
380 620 194 4104.9 6390 144 232 23176-2CS5/VT143 Rulman
380 620 194 4104.9 6390 144 225 23176-2CS5K/VT143 Rulman
380 680 240 5513.4 8235 450 675 375 23276 CA/W33 Rulman
380 680 240 5513.4 8235 450 675 365 23276 CAK/W33 Rulman
380 520 106 1809.9 3420 990 1080 64.5 23976 CC/W33 Rulman
380 520 106 1809.9 3420 990 1080 62.5 23976 CCK/W33 Rulman
380 560 180 3407.4 6120 603 855 150 24076 CC/W33 Rulman
380 560 180 3407.4 6120 603 855 150 24076 CCK30/W33 Rulman
380 620 243 5342.4 8820 324 477 285 24176 ECA/W33 Rulman
380 620 243 5342.4 8820 324 477 280 24176 ECAK30/W33 Rulman
380 620 243 5355 8820 54 285 24176-2CS5K30/C3HGEA8 Rulman
400 820 243 7048.8 9360 387 675 620 22380 CA/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
400 820 243 7048.8 9360 387 675 610 22380 CAK/W33 Rulman
400 600 148 3071.7 5130 765 990 150 23080 CAC/W33 Rulman
400 600 148 3071.7 5130 765 990 145 23080 CACK/W33 Rulman
400 600 148 3159.9 5265 765 990 145 23080 CC/W33 Rulman
400 600 148 3159.9 5265 765 990 140 23080 CCK/W33 Rulman
400 600 148 3163.5 5265 216 143 23080-2CS5/VT143 Rulman
400 600 148 3163.5 5265 216 143 23080-2CS5K/VT143 Rulman
400 650 200 4377.6 6885 477 855 260 23180 CA/W33 Rulman
400 650 200 4377.6 6885 477 855 250 23180 CAK/W33 Rulman
400 650 200 4377.6 6885 135 255 23180-2CS5/VT143 Rulman
400 650 200 4377.6 6885 135 255 23180-2CS5K/VT143 Rulman
400 720 256 6192.9 9360 432 603 450 23280 CA/W33 Rulman
400 720 256 6192.9 9360 432 603 440 23280 CAK/W33 Rulman
400 540 106 1834.2 3510 990 1080 69.5 23980 CC/W33 Rulman
400 540 106 1834.2 3510 990 1080 67 23980 CCK/W33 Rulman
400 600 200 4056.3 7200 567 810 210 24080 ECCJ/W33 Rulman
400 600 200 4056.3 7200 567 810 205 24080 ECCK30J/W33 Rulman
400 650 250 5697.9 9540 306 450 320 24180 ECA/W33 Rulman
400 650 250 5697.9 9540 306 450 315 24180 ECAK30/W33 Rulman
400 650 250 5708.7 9540 49.5 320 24180-2CS5K30/C3HGEA8 Rulman
420 620 150 3186.9 5400 540 990 155 23084 CA/W33 Rulman
420 620 150 3186.9 5400 540 990 150 23084 CAK/W33 Rulman
420 700 224 5327.1 8370 432 810 345 23184 CJ/W33 Rulman
420 700 224 5327.1 8370 432 810 335 23184 CKJ/W33 Rulman
420 700 224 5327.1 8370 171 350 23184-2CS5/VT143 Rulman
420 700 224 5327.1 8370 171 340 23184-2CS5K/VT143 Rulman
420 760 272 6909.3 10440 405 567 535 23284 CA/W33 Rulman
420 760 272 6909.3 10440 405 567 520 23284 CAK/W33 Rulman
420 760 272 6914.7 10440 115.2 535 23284-2CS5/VT143 Rulman
420 760 272 6914.7 10440 115.2 519 23284-2CS5K/VT143 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
420 560 106 1874.7 3735 900 990 77 23984 CC/W33 Rulman
420 560 106 1874.7 3735 900 990 75 23984 CCK/W33 Rulman
420 620 200 4149 7470 477 810 210 24084 ECA/W33 Rulman
420 620 200 4149 7470 477 810 205 24084 ECAK30/W33 Rulman
420 700 280 6819.3 11250 288 432 425 24184 ECA/W33 Rulman
420 700 280 6819.3 11250 288 432 420 24184 ECAK30/W33 Rulman
420 700 280 6831.9 11250 49.5 425 24184-2CS5K30/C3HGEA8 Rulman
440 650 157 3447.9 5895 504 900 180 23088 CA/W33 Rulman
440 650 157 3447.9 5895 504 900 175 23088 CAK/W33 Rulman
440 650 157 3450.6 5895 171 178 23088-2CS5/VT143 Rulman
440 720 226 5593.5 9000 405 765 365 23188 CA/W33 Rulman
440 720 226 5593.5 9000 405 765 355 23188 CAK/W33 Rulman
440 720 226 5598 9000 162 360 23188-2CS5/VT143 Rulman
440 720 226 5598 9000 162 348 23188-2CS5K/VT143 Rulman
440 790 280 7335 11250 387 540 590 23288 CA/W33 Rulman
440 790 280 7335 11250 387 540 575 23288 CAK/W33 Rulman
440 600 118 2255.4 4410 855 900 98 23988 CC/W33 Rulman
440 600 118 2255.4 4410 855 900 95 23988 CCK/W33 Rulman
440 650 212 4488.3 8235 450 765 240 24088 ECA/W33 Rulman
440 650 212 4488.3 8235 450 765 240 24088 ECAK30/W33 Rulman
440 720 280 6999.3 11880 270 405 445 24188 ECA/W33 Rulman
440 720 280 6999.3 11880 270 405 440 24188 ECAK30/W33 Rulman
440 720 280 7013.7 11880 45 440 24188-2CS5K30/C3HGEA8 Rulman
460 680 163 3658.5 6255 504 855 200 23092 CA/W33 Rulman
460 680 163 3658.5 6255 504 855 195 23092 CAK/W33 Rulman
460 760 240 6084 9720 387 720 430 23192 CA/W33 Rulman
460 760 240 6084 9720 387 720 420 23192 CAK/W33 Rulman
460 760 240 6088.5 9720 115.2 427 23192-2CS5/VT143 Rulman
460 760 240 6088.5 9720 115.2 414 23192-2CS5K/VT143 Rulman
460 830 296 8062.2 12330 360 504 695 23292 CA/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
460 830 296 8062.2 12330 360 504 675 23292 CAK/W33 Rulman
460 620 118 2302.2 4500 540 900 105 23992 CA/W33 Rulman
460 620 118 2302.2 4500 540 900 99.5 23992 CAK/W33 Rulman
460 680 218 4860.9 9000 432 720 275 24092 ECA/W33 Rulman
460 680 218 4860.9 9000 432 720 270 24092 ECAK30/W33 Rulman
460 760 300 7747.2 13140 252 387 540 24192 ECA/W33 Rulman
460 760 300 7747.2 13140 252 387 530 24192 ECAK30/W33 Rulman
460 760 300 7767 13140 45 535 24192-2CS5K30/C3HGEA8 Rulman
460 580 118 1873.8 4410 567 990 75.5 24892 CAK30MA/W20 Rulman
460 580 118 1873.8 4410 567 990 76.5 24892 CAMA/W20 Rulman
480 700 165 3596.4 6120 477 855 210 23096 CA/W33 Rulman
480 700 165 3596.4 6120 477 855 205 23096 CAK/W33 Rulman
480 790 248 6625.8 10800 360 675 485 23196 CA/W33 Rulman
480 790 248 6625.8 10800 360 675 470 23196 CAK/W33 Rulman
480 790 248 6630.3 10800 153 485 23196-2CS5/VT143 Rulman
480 790 248 6630.3 10800 153 469 23196-2CS5K/VT143 Rulman
480 870 310 8824.5 13500 342 477 805 23296 CA/W33 Rulman
480 870 310 8824.5 13500 342 477 785 23296 CAK/W33 Rulman
480 650 128 2691 5130 504 900 125 23996 CA/W33 Rulman
480 650 128 2691 5130 504 900 120 23996 CAK/W33 Rulman
480 700 218 4971.6 9360 405 675 285 24096 ECA/W33 Rulman
480 700 218 4971.6 9360 405 675 280 24096 ECAK30/W33 Rulman
480 790 308 8278.2 14040 234 360 595 24196 ECA/W33 Rulman
480 790 308 8278.2 14040 234 360 585 24196 ECAK30/W33 Rulman
480 790 308 8293.5 14040 40.5 590 24196-2CS5K30/C3HGEA8 Rulman
500 720 167 3922.2 7020 450 810 220 230/500 CA/W33 Rulman
500 720 167 3922.2 7020 450 810 215 230/500 CAK/W33 Rulman
500 830 264 7233.3 11610 342 630 575 231/500 CA/W33 Rulman
500 830 264 7233.3 11610 342 630 555 231/500 CAK/W33 Rulman
500 920 336 10064.7 15570 324 450 990 232/500 CA/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
500 920 336 10064.7 15570 324 450 965 232/500 CAK/W33 Rulman
500 670 128 2670.3 5400 477 855 130 239/500 CA/W33 Rulman
500 670 128 2670.3 5400 477 855 125 239/500 CAK/W33 Rulman
500 720 218 5199.3 9900 387 630 295 240/500 ECA/W33 Rulman
500 720 218 5199.3 9900 387 630 290 240/500 ECAK30/W33 Rulman
500 830 325 9110.7 15300 234 342 695 241/500 ECA/W33 Rulman
500 830 325 9110.7 15300 234 342 685 241/500 ECAK30/W33 Rulman
500 830 325 9130.5 15300 40.5 680 241/500-2CS5K30/C3HGEA8 Rulman
500 830 325 9130.5 15300 153 680 241/500-2CS5K30/C3VT143 Rulman
530 780 185 4740.3 8370 405 720 300 230/530 CA/W33 Rulman
530 780 185 4740.3 8370 405 720 295 230/530 CAK/W33 Rulman
530 870 272 7673.4 12600 324 603 640 231/530 CA/W33 Rulman
530 870 272 7673.4 12600 324 603 620 231/530 CAK/W33 Rulman
530 980 355 11941.2 18360 288 432 1195 232/530 CA/W33 Rulman
530 980 355 11941.2 18360 288 432 1165 232/530 CAK/W33 Rulman
530 710 136 2977.2 6030 450 810 155 239/530 CA/W33 Rulman
530 710 136 2977.2 6030 450 810 150 239/530 CAK/W33 Rulman
530 780 250 6434.1 11880 18 45 390 MÖ 240/530 Rulman
530 780 250 6275.7 11880 360 603 410 240/530 ECA/W33 Rulman
530 780 250 6275.7 11880 360 603 405 240/530 ECAK30/W33 Rulman
530 870 335 9818.1 17100 216 324 780 241/530 ECA/W33 Rulman
530 870 335 9818.1 17100 216 324 770 241/530 ECAK30/W33 Rulman
530 870 335 9844.2 17100 40.5 780 241/530-2CS5K30/C3HGEA8 Rulman
530 650 118 1911.6 4770 477 855 85 248/530 CAK30MA/W20 Rulman
560 820 195 5201.1 9180 387 675 350 230/560 CA/W33 Rulman
560 820 195 5201.1 9180 387 675 340 230/560 CAK/W33 Rulman
560 920 280 8636.4 14400 306 567 745 231/560 CA/W33 Rulman
560 920 280 8636.4 14400 306 567 720 231/560 CAK/W33 Rulman
560 1030 365 12546 19800 252 387 1355 232/560 CA/W33 Rulman
560 1030 365 12546 19800 252 387 1320 232/560 CAK/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
560 750 140 3213.9 6480 405 765 175 239/560 CA/W33 Rulman
560 750 140 3213.9 6480 405 765 170 239/560 CAK/W33 Rulman
560 820 258 6777 12600 18 45 445 MÖ 240/560 Rulman
560 820 258 6858.9 13140 342 567 465 240/560 ECA/W33 Rulman
560 820 258 6858.9 13140 342 567 460 240/560 ECAK30/W33 Rulman
560 920 355 11129.4 19440 198 288 915 241/560 ECJ/W33 Rulman
560 920 355 11129.4 19440 198 288 900 241/560 ECK30J/W33 Rulman
560 920 355 11148.3 19440 36 920 241/560-2CS5K30/C3HGEA8 Rulman
600 870 200 5626.8 10260 360 630 400 230/600 CA/W33 Rulman
600 870 200 5626.8 10260 360 630 390 230/600 CAK/W33 Rulman
600 980 300 9664.2 16200 288 504 900 231/600 CA/W33 Rulman
600 980 300 9664.2 16200 288 504 875 231/600 CAK/W33 Rulman
600 1090 388 14086.8 22950 234 360 1610 232/600 CA/W33 Rulman
600 800 150 3619.8 7470 387 675 215 239/600 CA/W33 Rulman
600 800 150 3619.8 7470 387 675 210 239/600 CAK/W33 Rulman
600 870 272 7651.8 14670 18 40.5 520 MÖ 240/600 Rulman
600 870 272 7722 15300 306 504 540 240/600 ECA/W33 Rulman
600 870 272 7722 15300 306 504 535 240/600 ECAK30/W33 Rulman
600 980 375 12169.8 21240 180 270 1100 241/600 ECA/W33 Rulman
600 980 375 12169.8 21240 180 270 1085 241/600 ECAK30/W33 Rulman
600 980 375 12199.5 21600 36 1095 241/600-2CS5K30/C3HGEA8 Rulman
630 920 212 6208.2 11250 342 603 475 230/630 CA/W33 Rulman
630 920 212 6208.2 11250 342 603 460 230/630 CAK/W33 Rulman
630 1030 315 11340 18720 234 477 1035 231/630 CA/W33 Rulman
630 1030 315 11340 18720 234 477 1005 231/630 CAK/W33 Rulman
630 780 112 2290.5 5490 387 675 125 238/630 CAMA/W20 Rulman
630 850 165 4269.6 8820 360 630 270 239/630 CA/W33 Rulman
630 850 165 4269.6 8820 360 630 265 239/630 CAK/W33 Rulman
630 920 290 8376.3 15840 18 40.5 625 MÖ 240/630 Rulman
630 920 290 8235 16200 288 477 640 240/630 ECJ/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
630 920 290 8235 16200 288 477 630 240/630 ECK30J/W33 Rulman
630 1030 400 13500.9 24300 171 252 1295 241/630 ECA/W33 Rulman
630 1030 400 13500.9 24300 171 252 1280 241/630 ECAK30/W33 Rulman
630 1030 400 13535.1 24300 31.5 1295 241/630-2CS5K30/C3HGEA8 Rulman
670 980 230 7127.1 13140 306 540 585 230/670 CA/W33 Rulman
670 980 230 7127.1 13140 306 540 570 230/670 CAK/W33 Rulman
670 1090 336 11790.9 20160 216 450 1235 231/670 CA/W33 Rulman
670 1090 336 11790.9 20160 216 450 1200 231/670 CAK/W33 Rulman
670 820 112 2378.7 5760 360 630 130 238/670 CAMA/W20 Rulman
670 900 170 4631.4 9720 324 603 310 239/670 CA/W33 Rulman
670 900 170 4631.4 9720 324 603 300 239/670 CAK/W33 Rulman
670 980 308 9369.9 18000 18 40.5 755 MÖ 240/670 Rulman
670 980 308 9391.5 18360 270 450 790 240/670 ECA/W33 Rulman
670 980 308 9391.5 18360 270 450 775 240/670 ECAK30/W33 Rulman
670 1090 412 14742.9 26100 162 234 1495 241/670 ECA/W33 Rulman
670 1090 412 14742.9 26100 162 234 1470 241/670 ECAK30/W33 Rulman
670 1090 412 14779.8 26100 31.5 1480 241/670-2CS5K30/C3HGEA8 Rulman
670 820 150 3238.2 8550 360 630 175 248/670 CAMA/W20 Rulman
710 1030 236 7802.1 14670 270 504 655 230/710 CA/W33 Rulman
710 1030 236 7802.1 14670 270 504 635 230/710 CAK/W33 Rulman
710 1150 345 13258.8 23400 216 405 1425 231/710 CA/W33 Rulman
710 1150 345 13258.8 23400 216 405 1385 231/710 CAK/W33 Rulman
710 1280 450 19087.2 31050 180 288 2545 232/710 CA/W33 Rulman
710 1280 450 19087.2 31050 180 288 2475 232/710 CAK/W33 Rulman
710 870 118 2711.7 6750 324 603 155 238/710 CAMA/W20 Rulman
710 950 180 5131.8 10800 306 540 365 239/710 CA/W33 Rulman
710 950 180 5131.8 10800 306 540 350 239/710 CAK/W33 Rulman
710 1030 315 10049.4 19800 18 36 845 MÖ 240/710 Rulman
710 1030 315 10047.6 20520 234 405 890 240/710 ECA/W33 Rulman
710 1030 315 10047.6 20520 234 405 880 240/710 ECAK30/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
710 1150 438 16141.5 29250 144 216 1750 241/710 ECA/W33 Rulman
710 1150 438 16141.5 29250 144 216 1725 241/710 ECAK30/W33 Rulman
710 1150 438 16172.1 29250 27 1750 241/710-2CS5K30/C3HGEA8 Rulman
710 950 243 6174 14040 270 450 485 249/710 CA/W33 Rulman
710 950 243 6174 14040 270 450 480 249/710 CAK30/W33 Rulman
750 1090 250 9054.9 16740 252 477 780 230/750 CA/W33 Rulman
750 1090 250 9054.9 16740 252 477 755 230/750 CAK/W33 Rulman
750 1220 365 14866.2 26100 198 387 1705 231/750 CA/W33 Rulman
750 1220 365 14866.2 26100 198 387 1660 231/750 CAK/W33 Rulman
750 920 128 3064.5 7650 306 540 190 238/750 CAMA/W20 Rulman
750 1000 185 5524.2 11880 288 504 410 239/750 CA/W33 Rulman
750 1000 185 5524.2 11880 288 504 395 239/750 CAK/W33 Rulman
750 1090 335 11078.1 22050 18 36 1005 MÖ 240/750 Rulman
750 1090 335 11011.5 22500 216 387 1060 240/750 ECA/W33 Rulman
750 1090 335 11011.5 22500 216 387 1045 240/750 ECAK30/W33 Rulman
750 1220 475 18390.6 33750 135 198 2150 241/750 ECA/W33 Rulman
750 1220 475 18390.6 33750 135 198 2115 241/750 ECAK30/W33 Rulman
750 1220 475 18436.5 33750 27 2130 241/750-2CS5K30/C3HGEA8 Rulman
750 1000 250 6929.1 16200 252 432 555 249/750 CA/W33 Rulman
750 1000 250 6929.1 16200 252 432 545 249/750 CAK30/W33 Rulman
800 1150 258 9301.5 18000 234 432 880 230/800 CA/W33 Rulman
800 1150 258 9301.5 18000 234 432 855 230/800 CAK/W33 Rulman
800 1280 375 16229.7 28350 180 360 1880 231/800 CA/W33 Rulman
800 1280 375 16229.7 28350 180 360 1825 231/800 CAK/W33 Rulman
800 1420 488 22475.7 38700 162 252 3280 232/800 CAF/W33 Rulman
800 1420 488 22475.7 38700 162 252 3280 232/800 CAKF/W33 Rulman
800 1060 195 5935.5 12870 252 477 475 239/800 CA/W33 Rulman
800 1060 195 5935.5 12870 252 477 460 239/800 CAK/W33 Rulman
800 1150 345 12102.3 24750 18 36 1140 MÖ 240/800 Rulman
800 1150 345 12087.9 25650 198 360 1200 240/800 ECA/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
800 1280 475 19428.3 36450 126 180 2335 241/800 ECA/W33 Rulman
800 1280 475 19472.4 36450 27 2325 241/800-2CS5K30/C3HGEA8 Rulman
800 980 180 4302 11610 288 504 295 248/800 CAK30MA/W20 Rulman
800 1060 258 7322.4 17370 216 387 630 249/800 CA/W33 Rulman
850 1220 272 10161.9 19440 216 405 1040 230/850 CA/W33 Rulman
850 1220 272 10161.9 19440 216 405 1010 230/850 CAK/W33 Rulman
850 1500 515 24872.4 43200 144 234 3940 232/850 CAF/W33 Rulman
850 1030 136 3493.8 9000 234 477 235 238/850 CAKMA/W20 Rulman
850 1030 136 3493.8 9000 234 477 245 238/850 CAMA/W20 Rulman
850 1120 200 6364.8 14040 234 432 540 239/850 CA/W33 Rulman
850 1120 200 6364.8 14040 234 432 520 239/850 CAK/W33 Rulman
850 1220 365 13570.2 27900 18 36 1355 MÖ 240/850 Rulman
850 1220 365 13664.7 28350 180 324 1420 240/850 ECA/W33 Rulman
850 1220 365 13664.7 28350 180 324 1395 240/850 ECAK30/W33 Rulman
850 1360 500 21444.3 40500 117 171 2710 241/850 ECA/W33 Rulman
850 1360 500 21444.3 40500 117 171 2735 241/850 ECAK30/W33 Rulman
850 1360 500 21483 40500 27 2760 241/850-2CS5K30/C3HGEA8 Rulman
850 1120 272 8451 20520 198 360 740 249/850 CA/W33 Rulman
850 1120 272 8451 20520 198 360 725 249/850 CAK30/W33 Rulman
900 1280 280 10801.8 20880 198 360 1170 230/900 CA/W33 Rulman
900 1280 280 10801.8 20880 198 360 1140 230/900 CAK/W33 Rulman
900 1180 206 6886.8 15300 216 405 605 239/900 CA/W33 Rulman
900 1180 206 6886.8 15300 216 405 585 239/900 CAK/W33 Rulman
900 1280 375 14593.5 30600 18 36 1515 MÖ 240/900 Rulman
900 1280 375 14566.5 31050 171 306 1580 240/900 ECA/W33 Rulman
900 1280 375 14566.5 31050 171 306 1555 240/900 ECAK30/W33 Rulman
900 1420 515 22779 44100 108 162 3080 241/900 ECA/W33 Rulman
900 1420 515 22779 44100 108 162 3040 241/900 ECAK30/W33 Rulman
900 1420 515 22824 44100 22.5 3000 241/900-2CS5K30/C3HGEA8 Rulman
900 1090 190 4885.2 13770 216 432 375 248/900 CAMA/W20 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
950 1360 300 12926.7 25650 180 342 1440 230/950 CA/W33 Rulman
950 1360 300 12926.7 25650 180 342 1395 230/950 CAK/W33 Rulman
950 1250 224 7745.4 17640 198 387 750 239/950 CA/W33 Rulman
950 1250 224 7745.4 17640 198 387 725 239/950 CAK/W33 Rulman
950 1360 412 16405.2 34200 18 31.5 1875 MÖ 240/950 Rulman
950 1500 545 25102.8 49500 99 144 3640 241/950 ECA/W33 Rulman
950 1500 545 25102.8 49500 99 144 3580 241/950 ECAK30/C3LW33 Rulman
950 1500 545 25148.7 49500 22.5 3610 241/950-2CS5K30/C3HGEA8 Rulman
950 1250 300 9630.9 23400 162 306 1000 249/950 CA/W33 Rulman
950 1250 300 9630.9 23400 162 306 985 249/950 CAK30/W33 Rulman
1000 1580 462 23085 43200 126 252 3480 231/1000 CAF/W33 Rulman
1000 1580 462 23085 43200 126 252 3380 231/1000 CAKF/W33 Rulman
1000 1220 165 4864.5 12870 198 360 415 238/1000 CAKMA/W20 Rulman
1000 1420 412 16732.8 36450 144 252 2120 240/1000 CAF/W33 Rulman
1000 1420 412 16732.8 36450 144 252 2085 240/1000 CAK30F/W33 Rulman
1000 1580 580 28056.6 55800 90 135 4295 241/1000 ECA/W33 Rulman
1000 1580 580 28056.6 55800 90 135 4230 241/1000 ECAK30/C3W33 Rulman
1000 1580 580 28112.4 55800 22.5 4245 241/1000-2CS5K30/C3HGEA8 Rulman
1000 1320 315 10745.1 26100 153 288 1185 249/1000 CA/W33 Rulman
1060 1400 250 10199.7 23400 162 324 1065 239/1060 CAF/W33 Rulman
1060 1400 250 10199.7 23400 162 324 1035 239/1060 CAKF/W33 Rulman
1060 1500 438 18651.6 40950 135 234 2495 240/1060 CAF/W33 Rulman
1060 1500 438 18651.6 40950 135 234 2455 240/1060 CAK30F/W33 Rulman
1060 1660 600 28323.9 56700 81 126 4675 241/1060 ECAK30/C3HW33 Rulman
1060 1660 600 28323.9 56700 18 4805 241/1060-2CS6K30/C3HGEA8 Rulman
1060 1400 335 12018.6 29250 144 252 415 249/1060 CAF/W33 Rulman
1060 1400 335 12018.6 29250 144 252 1395 249/1060 CAK30F/W33 Rulman
1100 1730 660 31619.7 63900 5735 BS2-8138-2CS6K30/C4LGEA8 Rulman
1120 1580 462 20642.4 44100 18 31.5 2765 MÖ 240/1120 Rulman
1120 1580 462 20127.6 45000 117 216 2895 240/1120 CAF/W33 Rulman

Temel boyutlar Temel yük derecesi Hız derecelendirmeleri Kütle Modeliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Dinamik Statik Referans hızı Hızı sınırlamak Rulman No.
d [mm] D [mm] B [mm] C [kN] C0 [kN] [dev/dak] [dev/dak] [kg]
1120 1580 462 20127.6 45000 117 216 2850 240/1120 CAK30F/W33 Rulman
1120 1750 630 30614.4 61200 76.5 117 5410 241/1120 ECAK30/C3HW33 Rulman
1120 1750 630 30614.4 61200 18 5535 241/1120-2CS6K30/C3HGEA8 Rulman
1120 1460 335 12346.2 31050 126 234 1485 249/1120 CAF/W33 Rulman
1180 1420 180 6100.2 16740 153 288 575 238/1180 CAKFA/W20 Rulman
1180 1540 272 11768.4 27900 135 270 1350 239/1180 CAF/W33 Rulman
1180 1540 272 11768.4 27900 135 270 1310 239/1180 CAKF/W33 Rulman
1180 1660 475 22923.9 52650 117 198 3315 240/1180 CAK30F/W33 Rulman
1180 1850 670 34439.4 70200 67.5 99 6480 241/1180 ECAK30/C3HW33 Rulman
1180 1850 670 34439.4 70200 18 6645 241/1180-2CS6K30/C3HGEA8 Rulman
1180 1540 355 14175.9 36450 117 216 1765 249/1180 CAF/W33 Rulman
1250 1750 375 19130.4 40500 117 216 2845 230/1250 CAF/W33 Rulman
1250 1750 375 19130.4 40500 117 216 2760 230/1250 CAKF/W33 Rulman
1250 1950 710 36802.8 79200 63 90 7725 241/1250 ECAK30/C3HW33 Rulman
1250 1950 710 36802.8 79200 18 7865 241/1250-2CS6K30/C3HGEA8 Rulman
1320 1720 400 16842.6 44100 99 180 2480 249/1320 CAF/W33 Rulman
1320 1720 400 16842.6 44100 99 180 2440 249/1320 CAK30F/W33 Rulman
1500 1820 315 13215.6 40500 99 198 1725 248/1500 CAK30FA/W20 Rulman
1800 2180 375 18246.6 56700 67.5 126 2920 248/1800 CAK30FA/W20 Rulman
[#giriş#]

Önerilen Ürünler

Hareketin Geleceğini Tasarlamak
UKL Hakkında
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China 22205 E Rulman suppliers and OEM/ODM 22205 E Rulman company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd Hakkımızda Daha Fazla Bilgi Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    yıllar

    Endüstri Deneyimi

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Model çeşitliliği

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Çalışan Sayısı

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Yıllık ihracat değeri

Ukl Bearing Manufacturing Co.,Ltd
Onur Belgesi
Haberler
Oynak Makaralı Rulmanlar Industry knowledge
